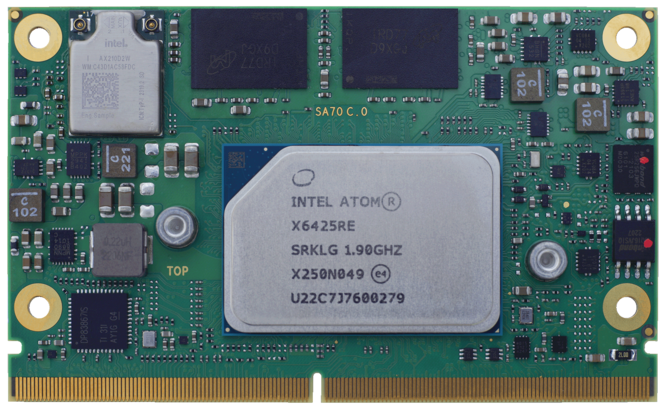

                conga-SA7

                Intel Atom® x6000E、インテル® Pentium®、Celeron® J プロセッサ シリーズを搭載した SMARC 2.1 モジュール

                Virtualization Ready
                • ハイパフォーマンス インテル® UHD グラフィックス（Gen11）
                • 産業用動作温度範囲 -40℃ ～ +85℃ のオプション
                • リアルタイム性能を向上させるための、TSN（Time Sensitive Networking）と、TCC（Time Coordinated Computing）オプション
                • 最高 4267 MT/sの LPDDR4x メモリをサポート
                • 製品ビデオ
                Congatec Logo
                Do you want to add further ecosystem parts (carrier boards, memory,...) to your request?

                Value adding ecosystem offerings

                Operating Systems

                Virtualization

                IOT Software

                Cooling Solutions

                Carrierboards

                Module services

                Specification

                Formfactor
                SMARC
                CPU
                Intel® Celeron® J6413 (4 x 1.8 GHz, 1.5 MB cache, 10W)
                Intel® Pentium® J6426 (4 x 2.0 GHz, 1.5 MB cache, 10W)
                Intel® Atom® x6414RE (4 x 1.5 GHz, 1.5 MB cache, 9W)
                Intel® Atom® x6425RE (4 x 1.9 GHz, 1.5 MB cache, 12W)
                Intel® Atom® x6212RE (2 x 1.2 GHz, 1.5 MB cache, 6W)
                Intel® Atom® x6211E (2 x 1.3 GHz, 1.5 MB cache, 6W)
                Intel® Atom® x6413E (4 x 1.5 GHz, 1.5 MB cache, 9W)
                Intel® Atom® x6425E (4 x 2.0 GHz, 1.5 MB cache, 12W)
                DRAM
                max. 16GB (optional up to 32 GB) onboard LPDDR4x | up to 4.267 MT/s​
                Ethernet
                2 x GbE with TSN support | 2x real-time trigger
                I/O Interfaces
                2 x USB 3.1 Gen2
                6 x USB 2.0
                1 x SATA III (6Gb/s)
                1 x SDIO
                up to 4x PCIe Gen3
                2 x I²C bus
                SPI
                1 x eSPI
                4 x UART
                GPIOs
                2 x CAN Bus
                onboard M.2 1216 WiFI/BT (optional)
                Mass storage
                eMMC 5.1 onboard flash up to 64 Gbyte (optional up to 128 Gbyte)
                Graphics
                Intel® UHD Graphics (Gen11)
                congatec Board Controller
                Multistage watchdog | non-volatile user data storage | manufacturing and board Information | board statistics | fast mode and multi-master I²C bus | power loss control
                embedded BIOS Features
                AMI Aptio UEFI
                32 MByte serial SPI firmware flash
                OEM Logo
                OEM CMOS Defaults
                LCD Control
                Display Auto Detection
                Backlight Control
                Flash Update
                Power Management
                ACPI 5 .0 compliant, Smart Battery Management
                Operating Systems
                Microsoft® Windows 11 IoT Enterprise
                Microsoft® Windows® 10
                Microsoft® Windows 10 IoT Enterprise
                Linux
                Yocto
                Hypervisor
                RTS Real-Time Hypervisor
                Temperature
                Commercial variants: Operation: 0° to +60°C | Storage: -20° to +80°C
                Industrial variants: Operation: -40° to +85°C | Storage: -40° to +85°C
                Humidity
                Operating: 10 to 85% r. H. non cond. / Storage 5 to 85% r. H. non cond.
                Video Interfaces
                Dual channel LVDS transmitter (support for flat panels with 2x24 bit data mapping up to a resolution of 1920x1200 @60Hz) | shared with eDP (option)
                DP++
                Size
                82 x 50 mm (3,23” x 1,97”)

                Documents

                All documents found on this page are updated without notification. Always check this page for the latest version.

                Manual

                User's Guide for for conga-SA7
                11.11.2024

                Data Sheet

                Data Sheet for conga-SA7
                22.10.2024

                Other

                [Translate to Japanisch:] Intel Elkhart Lake Whitepaper
                02.09.2022
                [Translate to Japanisch:] Intel Elkhart Lake Solution Brief
                08.09.2022

                Software

                [ EFI ]      [ Linux ]      [ Windows 10 ]      [ Windows 10 IoT ]      [ Windows 11 ]      [ yocto ]

                EFI

                cgutlcmd_efi_1.7.0.1.zip
                01.08.2024 / 2.12 MB
                congatec System Utility Rev. 1.7.0.1. for EFI shell. Use for BIOS update or customization and panel configuration.

                Linux

                CGOSAPIm14.pdf
                04.04.2017 / 1.07 MB
                CGOS API programmers manual
                cgoslx-x64-1.03.032.tar.xz
                09.05.2022 / 52.03 KB
                CGOS legacy driver 1.03.032 for 64bit Linux (Kernel version 3.x, 4.x, 5.x and 6.x). For kernel versions >= 5.8 please refer to readme.txt and/or consider using the cgoslx-x64-1.03.032_vmalloc.tar.xz package.
                cgoslx-x64-1.03.032_vmalloc.tar.xz
                09.05.2022 / 52.74 KB
                CGOS legacy driver 1.03.032 for 64bit Linux (Kernel versions 5.8 or higher). Modified driver package with Kernel patch as a workaround for memory allocation issues with Kernels >= 5.8
                CgosPy_1_3.zip
                23.07.2024 / 655.40 KB
                CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
                CGOS_DIRECT_Lx_R3.0.3.zip
                12.02.2025 / 186.42 KB
                CGOS direct driver for Linux.
                cgutillx.tar
                04.07.2023 / 3.93 MB
                congatec System Utility Rev. 1.6.2
                Use for BIOS update or customization and panel configuration. Linux source version.
                Important note: Only compatible with cgos 1.03.032 and older!
                cgutlcmd_linux_1.7.0.1.zip
                01.08.2024 / 2.32 MB
                congatec System Utility Rev. 1.7.0.1. for Linux. Use for BIOS update or customization and panel configuration. Only compatible with cgos direct 3.0.0 and newer!
                CGUTLGUI_Qt_v100.zip
                25.03.2019 / 30.28 MB
                Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.0.0. Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
                Important note: Only compatible with cgos 1.03.032 and older!

                Windows 10

                5.123.1.1025.zip
                27.10.2022 / 375.81 KB
                Intel serial io driver version 5.123.1.1025
                677487_IntelGbE-TI-PHY.zip
                12.01.2022 / 953.09 KB
                Intel chipset gigabit ethernet driver version 5.123.21.0722 (modified for TI PHY, needed for manual link speed selectin and led configuration)
                ADSP_10.30.00.7090.zip
                27.10.2022 / 333.56 MB
                Intel smart sound driver version 10.30.00.7090
                CgMlfTools_2019_10_24.zip
                25.03.2024 / 16.68 MB
                The congatec Menu Layout File Viewer (CgMlfViewer) and the congatec Menu Layout File Editor (CgMlfEditor) are Qt based applications meant to read Menu Layout Files (*.mlf) created by a congatec BIOS, to display all setup nodes and options and for the CgMlfEditor also to edit them.
                Cgos-x64-Windows10.zip
                05.09.2021 / 225.62 KB
                CGOS legacy driver 1.03.021 for 64bit Windows 10/11 only.
                CGOSAPIm14.pdf
                04.04.2017 / 1.07 MB
                CGOS API programmers manual
                CgosPy_1_3.zip
                23.07.2024 / 655.40 KB
                CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
                Cgos_direct_Win10_Win11_3.0.3.zip
                12.02.2025 / 49.25 MB
                CGOS direct driver for Windows 10 and Windows 11. Please refer to readme.txt for supported functions and boards.
                cgutlcmd_win_1.7.0.1.zip
                01.08.2024 / 18.41 MB
                congatec System Utility Rev. 1.7.0.1. for Windows. Use for BIOS update or customization and panel configuration. Important note: Only compatible with cgos direct 3.0.0 and newer!
                CGUTLGUI_Qt_v100.zip
                25.03.2019 / 30.28 MB
                Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.0.0. Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
                Important note: Only compatible with cgos 1.03.032 and older!
                Chipset-10.1.18768.8273-Public-MUP.zip
                12.01.2022 / 3.81 MB
                Intel Chipset driver 10.1.18768.8273
                HIDEventFilterDriver-2.2.2.1.zip
                27.10.2022 / 45.66 KB
                Intel(R) HID Event Filter Driver Version 2.2.2.1
                IntelGbE_220511.zip
                27.10.2022 / 49.60 KB
                Intel chipset gigabit ethernet driver version 5.123.22.0511 (normal Version)
                Intel_CSE_15.40.27.2664V4.zip
                27.10.2022 / 829.85 MB
                Intel Converged Security Engine 15.40.27.2664V4
                PHBTW55585_22.140.0.4G.zip
                27.10.2022 / 39.55 MB
                Windows 10 bluetooth driver for Elkhartlake version 22.140.0.4G
                PSEIO_MR4.zip
                27.10.2022 / 301.19 KB
                Intel Programmable Services Engine driver MR4
                win64_30.0.101.1692.zip
                27.10.2022 / 583.74 MB
                Intel HD Graphics Driver Rev. 30.0.101.1692

                Windows 10 IoT

                CgosPy_1_3.zip
                23.07.2024 / 655.40 KB
                CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
                cgutlcmd_win_1.7.0.1.zip
                01.08.2024 / 18.41 MB
                congatec System Utility Rev. 1.7.0.1. for Windows. Use for BIOS update or customization and panel configuration. Important note: Only compatible with cgos direct 3.0.0 and newer!

                Windows 11

                5.123.1.1025.zip
                27.10.2022 / 375.81 KB
                Intel serial io driver version 5.123.1.1025
                677487_IntelGbE-TI-PHY.zip
                12.01.2022 / 953.09 KB
                Intel chipset gigabit ethernet driver version 5.123.21.0722 (modified for TI PHY, needed for manual link speed selectin and led configuration)
                ADSP_10.30.00.7090.zip
                27.10.2022 / 333.56 MB
                Intel smart sound driver version 10.30.00.7090
                CgMlfTools_2019_10_24.zip
                25.03.2024 / 16.68 MB
                The congatec Menu Layout File Viewer (CgMlfViewer) and the congatec Menu Layout File Editor (CgMlfEditor) are Qt based applications meant to read Menu Layout Files (*.mlf) created by a congatec BIOS, to display all setup nodes and options and for the CgMlfEditor also to edit them.
                CgosPy_1_3.zip
                23.07.2024 / 655.40 KB
                CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
                Cgos_direct_Win10_Win11_3.0.3.zip
                12.02.2025 / 49.25 MB
                CGOS direct driver for Windows 10 and Windows 11. Please refer to readme.txt for supported functions and boards.
                CGUTLGUI_Qt_v100.zip
                25.03.2019 / 30.28 MB
                Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.0.0. Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
                Important note: Only compatible with cgos 1.03.032 and older!
                Chipset-10.1.18768.8273-Public-MUP.zip
                12.01.2022 / 3.81 MB
                Intel Chipset driver 10.1.18768.8273
                HIDEventFilterDriver-2.2.2.1.zip
                27.10.2022 / 45.66 KB
                Intel(R) HID Event Filter Driver Version 2.2.2.1
                IntelGbE_220511.zip
                27.10.2022 / 49.60 KB
                Intel chipset gigabit ethernet driver version 5.123.22.0511 (normal Version)
                Intel_CSE_15.40.27.2664V4.zip
                27.10.2022 / 829.85 MB
                Intel Converged Security Engine 15.40.27.2664V4
                PHBTW55585_22.140.0.4G.zip
                27.10.2022 / 39.55 MB
                Windows 10 bluetooth driver for Elkhartlake version 22.140.0.4G
                PSEIO_MR4.zip
                27.10.2022 / 301.19 KB
                Intel Programmable Services Engine driver MR4
                win64_30.0.101.1692.zip
                27.10.2022 / 583.74 MB
                Intel HD Graphics Driver Rev. 30.0.101.1692

                yocto

                README_Yocto-3-3-1-bsp.txt
                20.10.2021 / 18.10 KB
                Documentation for the congatec Yocto 3.3.1 BSP for x86 platforms. For sample images please contact congatec support.
                README_Yocto-3-4-1-bsp.txt
                01.06.2022 / 19.52 KB
                Documentation for the congatec Yocto 3.4.1 BSP for x86 platforms. For sample images please contact congatec support.
                README_Yocto-4-0-4-bsp.txt
                21.03.2023 / 18.16 KB
                Documentation for the congatec Yocto 4.0.4 BSP for x86 platforms. For sample images please contact congatec support.
                README_Yocto-4-1-1-bsp.txt
                21.03.2023 / 18.32 KB
                Documentation for the congatec Yocto 4.1.1 BSP for x86 platforms. For sample images please contact congatec support.

                Product Variants

                Product Filter:

                  Add Filter:

                   -
                   -
                   -
                   -
                   -
                   -
                  There are 1,000's of possible configurations of our products, and therefore every possible configuration may not be shown with this tool.
                  If you don't find the configuration you require contact your congatec Sales representative for further assistance.
                  conga-SA7/x6425E-16G eMMC64 (P/N 050100)

                  SMARC 2.1 module with Intel® Atom® x6425E quad core processor with 2.0GHz core frequency up to 3.0GHz, 1.5MB cache, 16GB 3200MT/s LPDDR4x onboard memory and 64GB eMMC onboard flash.

                  conga-SA7/x6413E-8G eMMC32 (P/N 050101)

                  SMARC 2.1 module with Intel® Atom® x6413E quad core processor with 1.5GHz core frequency up to 3.0GHz, 1.5MB cache, 8GB 3200MT/s LPDDR4x onboard memory and 32GB eMMC onboard flash.

                  conga-SA7/x6211E-4G eMMC32 (P/N 050102)

                  SMARC 2.1 module with Intel® Atom® x6211E dual core processor with 1.3GHz core frequency up to 3.0GHz, 1.5MB cache, 4GB 3200/s LPDDR4x onboard memory and 32GB eMMC onboard flash.

                  conga-SA7/i-x6425RE-8G eMMC32 (P/N 050110)

                  SMARC 2.1 module with Intel® Atom® x6425RE quad core processor with 1.8GHz core frequency, 1.5MB cache, 8GB 4267MT/s LPDDR4x onboard memory and 32GB eMMC onboard flash. Industrial grade temperature range from -40°C to 85°C.

                  conga-SA7/i-x6414RE-4G eMMC32 (P/N 050111)

                  SMARC 2.1 module with Intel® Atom® x6414RE quad core processor with 1.5GHz core frequency, 1.5MB cache, 4GB 3200MT/s LPDDR4x onboard memory and 32GB eMMC onboard flash. Industrial grade temperature range from -40°C to 85°C.

                  conga-SA7/i-x6212RE-4G eMMC32 (P/N 050112)

                  SMARC 2.1 module with Intel® Atom® x6212RE dual core processor with 1.2GHz core frequency, 1.5MB cache, 4GB 3200MT/s LPDDR4x onboard memory and 32GB eMMC onboard flash. Industrial grade temperature range from -40°C to 85°C.

                  conga-SA7/x6425E-8G eMMC32 (P/N 050103)

                  SMARC 2.1 module with Intel® Atom® x6425E quad core processor with 2.0GHz core frequency up to 3.0GHz, 1.5MB cache, 8GB 3733MT/s LPDDR4x onboard memory and 32GB eMMC onboard flash.

                  conga-SA7/J6426-16G eMMC64 (P/N 050120)

                  SMARC 2.1 module with Intel® Pentium® J6426 quad core processor with 2.0GHz core frequency up to 3.0GHz, 1.5MB cache, 16GB 3200MT/s LPDDR4x onboard memory and 64GB eMMC onboard flash.

                  conga-SA7/J6413-8G eMMC32 (P/N 050121)

                  SMARC 2.1 module with Intel® Celeron® J6413 quad core processor with 1.8GHz core frequency up to 3.0GHz, 1.5MB cache, 8GB 3733 MT/s LPDDR4x onboard memory and 32GB eMMC onboard flash.

                  conga-SA7/x6425E-4G eMMC32 (P/N 050104)

                  SMARC 2.1 module with Intel® Atom® x6425E quad core processor with 2.0GHz core frequency up to 3.0GHz, 1.5MB cache, 4GB 3733MT/s LPDDR4x onboard memory and 32GB eMMC onboard flash.

                  conga-SA7/i-x6425RE-4G eMMC32 (P/N 050113)

                  SMARC 2.1 module with Intel® Atom® x6425RE quad core processor with1.9GHz core frequency, 1.5MB cache, 4GB 3200MT/s LPDDR4x onboard memory and 32GB eMMC onboard flash. Industrial grade temperature range from-40°C to 85°C.

                  Ecosystem Details

                  Operating Systems

                  ctrlX OS (P/N )
                  Ubuntu Pro (P/N N/A)

                  Virtualization

                  RTS Hypervisor (P/N 300501)

                  IOT Software

                  COM Manager (P/N )
                  Application Manager (P/N )
                  Fleet Manager (P/N n/a)

                  Cooling Solutions

                  SA7/CSP-B (P/N 050153)

                  Passive cooling solution for SMARC 2.1 module conga-SA7 with open-die Intel® Pentium® and Celeron® J and N processorss. All standoffs are with 2.7mm bore hole

                  SA7/HSP-B (P/N 050152 )

                  Standard heatspreader for SMARC 2.1 module conga-SA7 with open-die Intel® Pentium® and Celeron® J and N processors. All standoffs are with 2.7mm bore hole

                  SA7/i-HSP-B (P/N 050151)

                  Standard heatspreader for SMARC 2.1 module conga-SA7 with lidded Intel Atom® x6000E processors. All standoffs are with 2.7mm bore hole.

                  SA7/i-CSP-B (P/N 050150)

                  Passive cooling solution for SMARC 2.1 module conga-SA7 with lidded Intel Atom® x6000E processors. All standoffs are with 2.7mm bore hole.

                  Carrierboards

                  conga-SEVAL (P/N 007010)

                  Evaluation Carrier Board for SMARC 2.0 modules.

                  conga-SMC1/SMARC-x86 (P/N 020751)

                  Application Carrier Board for x86 based SMARC 2.0 modules

                  Module services

                  Design-In Training (P/N 27000001)

                  Design-Training to develop carrier boards for Computer on Modules

                  Conformal Coating Qseven, SMARC, Type 10 (P/N )

                  HumiSeal® 1A33 coating for Qseven, SMARC and Type 10 modules; MIL-I-46058C qualified, IPC-CC-830 and RoHS
                  Directive 2002/95/EC compliant and recognized under UL File Number E105698.

                  Ext. temperature screening (-40°C to +85°C) (P/N )

                  congatec Wide Temperature Range Screening
                  Standard screening profile with 12h temperature screening and cold soak test
                  Including functional test and several boot-ups (before & after screening)

                  Ext. temperature screening (-25°C to +80°C) (P/N )

                  congatec Wide Temperature Range Screening
                  Standard screening profile with 12h temperature screening and cold soak test
                  Including functional test and several boot-ups (before & after screening)
