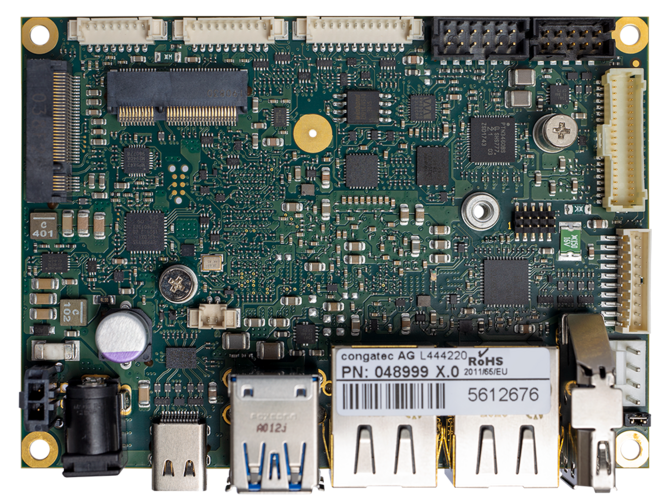

conga-PA7

Pico-ITX SBC based on Intel® Atom® x6000E, Intel® Pentium® and Celeron® J processor series

Virtualization Ready
  • Pico-ITX SBC based on Intel Atom® x6000E Series and Intel® Pentium® and Celeron® J and N Series processors
  • High performance Intel® UHD Graphics for 10th Gen Intel® Processors
  • LPDDR4x with up to 4.267 MT/s Memory Support
  • Options for Time Sensitive Networking and Time Coordinated Computing for improved Realtime Capability
  • Options for Industrial Temperature Range -40°C to 85°C
Congatec Logo
Do you want to add further ecosystem parts (carrier boards, memory,...) to your request?

Value adding ecosystem offerings

Cooling Solutions

Specification

Formfactor
Pico ITX
CPU
Intel® Celeron® J6413 (4 x 1.8 GHz, 1.5 MB cache, 10W)
Intel® Pentium® J6426 (4 x 2.0 GHz, 1.5 MB cache, 10W)
Intel® Atom® x6414RE (4 x 1.5 GHz, 1.5 MB cache, 9W)
Intel® Atom® x6425RE (4 x 1.9 GHz, 1.5 MB cache, 12W)
Intel® Atom® x6212RE (2 x 1.2 GHz, 1.5 MB cache, 6W)
Intel® Atom® x6211E (2 x 1.3 GHz, 1.5 MB cache, 6W)
Intel® Atom® x6413E (4 x 1.5 GHz, 1.5 MB cache, 9W)
Intel® Atom® x6425E (4 x 2.0 GHz, 1.5 MB cache, 12W)
DRAM
up to 4 Channels onboard LPDDR4x with up to 4,267 MT/s | max. system capacity 16 GB
Ethernet
2x LAN Gbit / 100 Mbit / 10 Mbit with TSN support and Out-Of-Band Management | 2x real-time trigger
I/O Interfaces
1 x DisplayPort DP++
2 x LAN RJ45
1 x USB 3.1 Gen2 Type C (with Power Delivery and DP)
1 x DC-In (external input)
2 x USB 3.1 Gen2 Type A
Mass storage
eMMC 5.1 onboard flash up to 64 Gbyte (optional up to 128 Gbyte)
Graphics
Intel® UHD Graphics (Gen11)
Internal Connectors
2x USB 2.0
1x LVDS 18/24bit or eDP (opt) or MIPI-DSI (opt)
1x Backlight power connector (5V, 12V)
1x Audio Connector (HP/Line Out, MIC In, opt. DMIC)
1x Power In (+12V)
2x COM (RS232/422/485)
Fan Connector with PWM
3x Feature Connector
1x M.2 key ID B type 2280 (2 PCIe lanes/SATA, USB 2.0)
M.2 key ID E (1 PCIe lane, USB 2.0)
2x CAN (opt.)
congatec Board Controller
Multistage watchdog | non-volatile user data storage | manufacturing and board Information | board statistics | fast mode and multi-master I²C bus | power loss control
embedded BIOS Features
AMI Aptio UEFI
OEM Customization
32 MByte serial SPI firmware flash
OEM Logo
OEM CMOS Defaults
LCD Control
Display Auto Detection
Backlight Control
Flash Update
Security
Trusted Platform Module (TPM 2.0)
Power Management
ACPI 5 .0 compliant, Smart Battery Management
Operating Systems
Microsoft® Windows 11 IoT Enterprise
Microsoft® Windows® 10
Microsoft® Windows 10 IoT Enterprise
Linux
Yocto
Hypervisor
RTS Real-Time Hypervisor
Temperature
Commercial variants: Operation: 0° to +60°C | Storage: -20° to +80°C
Industrial variants: Operation: -40° to +85°C | Storage: -40° to +85°C
Humidity
Operating: 10 to 85% r. H. non cond. / Storage 5 to 85% r. H. non cond.
Size
100 x 72 mm (3.9” x 2,8”)

Documents

All documents found on this page are updated without notification. Always check this page for the latest version.

Data Sheet

Data Sheet for conga-PA7
08.11.2024

Manual

User's Guide for conga-PA7
05.11.2024

Other

Intel Elkhart Lake Whitepaper
02.09.2022
Intel Elkhart Lake Solution Brief
08.09.2022

Software

[ EFI ]      [ Linux ]      [ Windows 10 ]      [ Windows 10 IoT ]      [ Windows 11 ]      [ yocto ]

EFI

cgutlcmd_efi_1.7.0.1.zip
01.08.2024 / 2.12 MB
congatec System Utility Rev. 1.7.0.1. for EFI shell. Use for BIOS update or customization and panel configuration.

Linux

CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
cgoslx-x64-1.03.032.tar.xz
09.05.2022 / 52.03 KB
CGOS legacy driver 1.03.032 for 64bit Linux (Kernel version 3.x, 4.x, 5.x and 6.x). For kernel versions >= 5.8 please refer to readme.txt and/or consider using the cgoslx-x64-1.03.032_vmalloc.tar.xz package.
cgoslx-x64-1.03.032_vmalloc.tar.xz
09.05.2022 / 52.74 KB
CGOS legacy driver 1.03.032 for 64bit Linux (Kernel versions 5.8 or higher). Modified driver package with Kernel patch as a workaround for memory allocation issues with Kernels >= 5.8
CgosPy_1_3.zip
23.07.2024 / 655.40 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
CGOS_DIRECT_Lx_R3.0.1.zip
06.09.2024 / 184.47 KB
CGOS direct driver for Linux.
cgutillx.tar
04.07.2023 / 3.93 MB
congatec System Utility Rev. 1.6.2
Use for BIOS update or customization and panel configuration. Linux source version.
Important note: Only compatible with cgos 1.03.032 and older!
cgutlcmd_linux_1.7.0.1.zip
01.08.2024 / 2.32 MB
congatec System Utility Rev. 1.7.0.1. for Linux. Use for BIOS update or customization and panel configuration. Only compatible with cgos direct 3.0.0 and newer!
CGUTLGUI_Qt_v100.zip
25.03.2019 / 30.28 MB
Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.0.0. Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
Important note: Only compatible with cgos 1.03.032 and older!

Windows 10

5.123.1.1025.zip
27.10.2022 / 375.81 KB
Intel serial io driver version 5.123.1.1025
677487_IntelGbE-TI-PHY.zip
12.01.2022 / 953.09 KB
Intel chipset gigabit ethernet driver version 5.123.21.0722 (modified for TI PHY, needed for manual link speed selectin and led configuration)
ADSP_10.30.00.7090.zip
27.10.2022 / 333.56 MB
Intel smart sound driver version 10.30.00.7090
CgMlfTools_2019_10_24.zip
25.03.2024 / 16.68 MB
The congatec Menu Layout File Viewer (CgMlfViewer) and the congatec Menu Layout File Editor (CgMlfEditor) are Qt based applications meant to read Menu Layout Files (*.mlf) created by a congatec BIOS, to display all setup nodes and options and for the CgMlfEditor also to edit them.
Cgos-x64-Windows10.zip
05.09.2021 / 225.62 KB
CGOS legacy driver 1.03.021 for 64bit Windows 10/11 only.
CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
CgosPy_1_3.zip
23.07.2024 / 655.40 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
Cgos_direct_Win10_Win11_3.0.0.zip
05.08.2024 / 49.24 MB
CGOS direct driver for Windows 10 and Windows 11. Please refer to readme.txt for supported functions and boards.
cgutlcmd_win_1.7.0.1.zip
01.08.2024 / 18.41 MB
congatec System Utility Rev. 1.7.0.1. for Windows. Use for BIOS update or customization and panel configuration. Important note: Only compatible with cgos direct 3.0.0 and newer!
CGUTLGUI_Qt_v100.zip
25.03.2019 / 30.28 MB
Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.0.0. Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
Important note: Only compatible with cgos 1.03.032 and older!
Chipset-10.1.18768.8273-Public-MUP.zip
12.01.2022 / 3.81 MB
Intel Chipset driver 10.1.18768.8273
HIDEventFilterDriver-2.2.2.1.zip
27.10.2022 / 45.66 KB
Intel(R) HID Event Filter Driver Version 2.2.2.1
IntelGbE_220511.zip
27.10.2022 / 49.60 KB
Intel chipset gigabit ethernet driver version 5.123.22.0511 (normal Version)
Intel_CSE_15.40.27.2664V4.zip
27.10.2022 / 829.85 MB
Intel Converged Security Engine 15.40.27.2664V4
PHBTW55585_22.140.0.4G.zip
27.10.2022 / 39.55 MB
Windows 10 bluetooth driver for Elkhartlake version 22.140.0.4G
PSEIO_MR4.zip
27.10.2022 / 301.19 KB
Intel Programmable Services Engine driver MR4
win64_30.0.101.1692.zip
27.10.2022 / 583.74 MB
Intel HD Graphics Driver Rev. 30.0.101.1692

Windows 10 IoT

CgosPy_1_3.zip
23.07.2024 / 655.40 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
cgutlcmd_win_1.7.0.1.zip
01.08.2024 / 18.41 MB
congatec System Utility Rev. 1.7.0.1. for Windows. Use for BIOS update or customization and panel configuration. Important note: Only compatible with cgos direct 3.0.0 and newer!

Windows 11

5.123.1.1025.zip
27.10.2022 / 375.81 KB
Intel serial io driver version 5.123.1.1025
677487_IntelGbE-TI-PHY.zip
12.01.2022 / 953.09 KB
Intel chipset gigabit ethernet driver version 5.123.21.0722 (modified for TI PHY, needed for manual link speed selectin and led configuration)
ADSP_10.30.00.7090.zip
27.10.2022 / 333.56 MB
Intel smart sound driver version 10.30.00.7090
CgMlfTools_2019_10_24.zip
25.03.2024 / 16.68 MB
The congatec Menu Layout File Viewer (CgMlfViewer) and the congatec Menu Layout File Editor (CgMlfEditor) are Qt based applications meant to read Menu Layout Files (*.mlf) created by a congatec BIOS, to display all setup nodes and options and for the CgMlfEditor also to edit them.
CgosPy_1_3.zip
23.07.2024 / 655.40 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
Cgos_direct_Win10_Win11_3.0.0.zip
05.08.2024 / 49.24 MB
CGOS direct driver for Windows 10 and Windows 11. Please refer to readme.txt for supported functions and boards.
CGUTLGUI_Qt_v100.zip
25.03.2019 / 30.28 MB
Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.0.0. Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
Important note: Only compatible with cgos 1.03.032 and older!
Chipset-10.1.18768.8273-Public-MUP.zip
12.01.2022 / 3.81 MB
Intel Chipset driver 10.1.18768.8273
HIDEventFilterDriver-2.2.2.1.zip
27.10.2022 / 45.66 KB
Intel(R) HID Event Filter Driver Version 2.2.2.1
IntelGbE_220511.zip
27.10.2022 / 49.60 KB
Intel chipset gigabit ethernet driver version 5.123.22.0511 (normal Version)
Intel_CSE_15.40.27.2664V4.zip
27.10.2022 / 829.85 MB
Intel Converged Security Engine 15.40.27.2664V4
PHBTW55585_22.140.0.4G.zip
27.10.2022 / 39.55 MB
Windows 10 bluetooth driver for Elkhartlake version 22.140.0.4G
PSEIO_MR4.zip
27.10.2022 / 301.19 KB
Intel Programmable Services Engine driver MR4
win64_30.0.101.1692.zip
27.10.2022 / 583.74 MB
Intel HD Graphics Driver Rev. 30.0.101.1692

yocto

README_Yocto-3-3-1-bsp.txt
20.10.2021 / 18.10 KB
Documentation for the congatec Yocto 3.3.1 BSP for x86 platforms. For sample images please contact congatec support.
README_Yocto-3-4-1-bsp.txt
01.06.2022 / 19.52 KB
Documentation for the congatec Yocto 3.4.1 BSP for x86 platforms. For sample images please contact congatec support.
README_Yocto-4-0-4-bsp.txt
21.03.2023 / 18.16 KB
Documentation for the congatec Yocto 4.0.4 BSP for x86 platforms. For sample images please contact congatec support.
README_Yocto-4-1-1-bsp.txt
21.03.2023 / 18.32 KB
Documentation for the congatec Yocto 4.1.1 BSP for x86 platforms. For sample images please contact congatec support.
