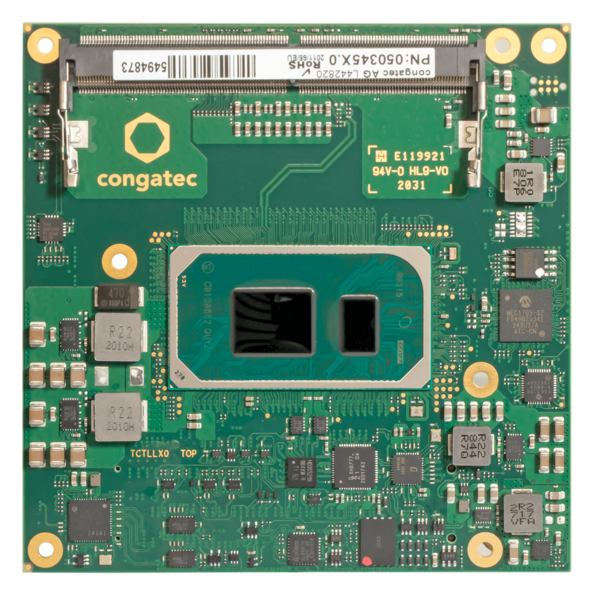

conga-TC570

COM Express Type 6 Compact module based on 11th Gen Intel® Core™ processor family (code name "Tiger Lake")

Selected module variant

Value adding ecosystem offerings


Cooling Solutions

Memory

Carrierboards

Module services

Request quote + Add more articles

conga-TC570

COM Express Type 6 Compact module based on 11th Gen Intel® Core™ processor family (code name "Tiger Lake")

Virtualization Ready
  • COM Express Type 6 Compact
  • Embedded/Industrial use condition
  • Extended temperature options
  • PCI Express Gen 4
  • Integrated high performance Xe (Gen 12) graphics with 96 EU
  • AI/DL Instruction Sets including VNNI
Congatec Logo
Do you want to add further ecosystem parts (carrier boards, memory,...) to your request?

Value adding ecosystem offerings

Cooling Solutions

Memory

Carrierboards

Module services

Specification

Formfactor
COM Express Compact
CPU
Intel® Core™ i7-1185G7E (4 x 1.8 GHz, 12 MB cache, 15W)
Intel® Core™ i5-1145G7E (4 x 1.5 GHz, 8 MB cache, 15W)
Intel® Core™ i3-1115G4E (2 x 2.2 GHz, 6 MB cache, 15W)
Intel® Celeron® 6305E (2 x 1.8 GHz, 4MB cache, 15W)
Intel® Core™ i7-1185GRE (4 x 1.8 GHz, 12 MB cache, 15W)
Intel® Core™ i5-1145GRE (4 x 1.5 GHz, 8 MB cache, 15W)
Intel® Core™ i3-1115GRE (2 x 2.2 GHz, 6 MB cache, 15W)
DRAM
Up to 2 SO DIMM sockets for DDR4 memory modules up to 32 GByte each (64 GByte total) with 3200 MT/s
Ethernet
1 x 2.5 GbE with TSN support via Intel® i226 Ethernet controller series
I/O Interfaces
8 x PCI Express GEN 3.0 lanes
PEG support x4 (PCIe Gen4)
4 x USB 3.1 Gen2
8 x USB 2.0
2 x SATA III (6Gb/s)
SPI
2 x UART
8 x GPIOs
Graphics
Integrated Xe (Gen 12) graphics engine with up to 96 EU (Execution Units) | Supporting 4 independent display units (4x 4k/2x 8K) | Enhanced media (AV1/12b) with up to 2 Vdbox | Next Gen IPU6 with DPHY2.1 | DP 1.4
congatec Board Controller
Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control | Hardware Health Monitoring | POST Code redirection
Security
Trusted Platform Module (TPM 2.0)
Power Management
ACPI 5.0 with battery support
Hypervisor
RTS Real-Time Hypervisor
Temperature
Industrial: Operating: -40 to +85°C | Storage: -40 to +85°C
Commercial: Operating: 0 to +60°C | Storage: -40 to +85°C
Humidity
Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond.
Video Interfaces
3x DDI/DP++ | eDP/LVDS | VGA (optional)
Size
95 x 95 mm (3,74" x 3,74")

Documents

All documents found on this page are updated without notification. Always check this page for the latest version.

Data Sheet

Data Sheet for conga-TC570
21.11.2024

Manual

User's Guide for conga-TC570
11.11.2024

Other

Intel Tiger Lake Whitepaper
30.10.2024

Software

[ EFI ]      [ Linux ]      [ Windows 10 ]      [ Windows 10 IoT ]      [ Windows 11 ]      [ yocto ]

EFI

cgutlcmd_efi_1.7.0.1.zip
01.08.2024 / 2.12 MB
congatec System Utility Rev. 1.7.0.1. for EFI shell. Use for BIOS update or customization and panel configuration.

Linux

CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
cgoslx-x64-1.03.032.tar.xz
09.05.2022 / 52.03 KB
CGOS legacy driver 1.03.032 for 64bit Linux (Kernel version 3.x, 4.x, 5.x and 6.x). For kernel versions >= 5.8 please refer to readme.txt and/or consider using the cgoslx-x64-1.03.032_vmalloc.tar.xz package.
cgoslx-x64-1.03.032_vmalloc.tar.xz
09.05.2022 / 52.74 KB
CGOS legacy driver 1.03.032 for 64bit Linux (Kernel versions 5.8 or higher). Modified driver package with Kernel patch as a workaround for memory allocation issues with Kernels >= 5.8
CgosPy_1_3.zip
23.07.2024 / 655.40 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
CGOS_DIRECT_Lx_R3.0.2.zip
19.12.2024 / 186.40 KB
CGOS direct driver for Linux.
cgutillx.tar
04.07.2023 / 3.93 MB
congatec System Utility Rev. 1.6.2
Use for BIOS update or customization and panel configuration. Linux source version.
Important note: Only compatible with cgos 1.03.032 and older!
CGUTILm16.pdf
02.07.2020 / 2.67 MB
congatec System Utility Users Guide
cgutlcmd_linux_1.7.0.1.zip
01.08.2024 / 2.32 MB
congatec System Utility Rev. 1.7.0.1. for Linux. Use for BIOS update or customization and panel configuration. Only compatible with cgos direct 3.0.0 and newer!
CGUTLGUI_Qt_v100.zip
25.03.2019 / 30.28 MB
Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.0.0. Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
Important note: Only compatible with cgos 1.03.032 and older!

Windows 10

638910-I225-I226-NDIS-Win-x64-1.1.4.38.zip
04.07.2023 / 482.29 KB
I225 & I226 Ethernet Driver Version 1.1.4.38
CgMlfTools_2019_10_24.zip
25.03.2024 / 16.68 MB
The congatec Menu Layout File Viewer (CgMlfViewer) and the congatec Menu Layout File Editor (CgMlfEditor) are Qt based applications meant to read Menu Layout Files (*.mlf) created by a congatec BIOS, to display all setup nodes and options and for the CgMlfEditor also to edit them.
CgMlfViewer_v100_bin.zip
25.10.2019 / 7.99 MB
The congatec Menu Layout File Viewer (CgMlfViewer) is a Qt based application meant to read Menu Layout Files (*.mlf) created by a congatec BIOS and to display all setup nodes and options.
Cgos-x64-Windows10.zip
05.09.2021 / 225.62 KB
CGOS legacy driver 1.03.021 for 64bit Windows 10/11 only.
CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
CgosClr.zip
22.02.2016 / 40.98 KB
CGOS API Library for the .NET Framework The CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.
CgosPy_1_3.zip
23.07.2024 / 655.40 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
Cgos_direct_Win10_Win11_3.0.0.zip
05.08.2024 / 49.24 MB
CGOS direct driver for Windows 10 and Windows 11. Please refer to readme.txt for supported functions and boards.
CGUTILm16.pdf
02.07.2020 / 2.67 MB
congatec System Utility Users Guide
cgutlcmd_win_1.7.0.1.zip
01.08.2024 / 18.41 MB
congatec System Utility Rev. 1.7.0.1. for Windows. Use for BIOS update or customization and panel configuration. Important note: Only compatible with cgos direct 3.0.0 and newer!
CGUTLGUI_Qt_v100.zip
25.03.2019 / 30.28 MB
Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.0.0. Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
Important note: Only compatible with cgos 1.03.032 and older!
Chipset-10.1.19502.8391-Public-MUP.zip
19.11.2024 / 4.91 MB
Chipset driver version 10.1.19502.8391
HIDEventFilterDriver-2.2.1.386_v4_RS5_19H1_20H1_21H2_22H2_Certified.zip
19.11.2024 / 1.68 MB
Intel(R) HID Event Filter Driver Version 2.2.1.386_v4
Intel_CSME_SW_2410.5.64.0_Consumer.zip
19.11.2024 / 1,017.13 MB
CSME Consumer Driver: Version 2410.5.64.0
Intel_CSME_SW_2410.5.64.0_Corporate.zip
19.11.2024 / 1.17 GB
Intel(R) Management Engine Firmware for Windows 10/11 - 64 Bit
Intel_DTT-8.7.10802.26924.zip
19.11.2024 / 47.56 MB
Intel(R) Dynamic Tuning Technology Driver Version 8.7.10802.26924
RST_PV_18.7.6.1011.1_Win10_20H1-22H2_Win11_21H2.zip
04.07.2023 / 80.18 MB
Rapid Storage Technology Driver: Version 18.7.6.1011.1_Win10_20H1-22H2_Win11_21H2
SerialIO_30.100.2129.8_PV_TGL_PCH_Win11.zip
09.12.2021 / 2.65 MB
Serial IO Driver Version 30.100.2129.8
TBT_DCH_SW_Rev88.zip
04.07.2023 / 244.91 MB
Thunderbolt Driver Rev88; GATL, GBTL only;
win64-31.0.101.4091.zip
04.07.2023 / 725.50 MB
Intel(R) Graphics Driver: 31.0.101.4091 Windows 10 64Bit
win64-31.0.101.5186.zip
19.11.2024 / 680.06 MB
Intel(R) Graphics Driver: 31.0.101.5186 Windows 10/11 64Bit

Windows 10 IoT

CgosPy_1_3.zip
23.07.2024 / 655.40 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
cgutlcmd_win_1.7.0.1.zip
01.08.2024 / 18.41 MB
congatec System Utility Rev. 1.7.0.1. for Windows. Use for BIOS update or customization and panel configuration. Important note: Only compatible with cgos direct 3.0.0 and newer!
cgw10lt-tctl_r01.zip
21.10.2021 / 1,015.95 MB
Board Support Package for TCTL, GATL, TCTO CPU modules - Rev. 01. Contains 64bit Windows 10 IoT Enterprise LTSB driver files for video, SATA, sound, network.

Windows 11

638910-I225-I226-NDIS-Win-x64-1.1.4.38.zip
04.07.2023 / 482.29 KB
I225 & I226 Ethernet Driver Version 1.1.4.38
CgMlfTools_2019_10_24.zip
25.03.2024 / 16.68 MB
The congatec Menu Layout File Viewer (CgMlfViewer) and the congatec Menu Layout File Editor (CgMlfEditor) are Qt based applications meant to read Menu Layout Files (*.mlf) created by a congatec BIOS, to display all setup nodes and options and for the CgMlfEditor also to edit them.
CgMlfViewer_v100_bin.zip
25.10.2019 / 7.99 MB
The congatec Menu Layout File Viewer (CgMlfViewer) is a Qt based application meant to read Menu Layout Files (*.mlf) created by a congatec BIOS and to display all setup nodes and options.
CgosClr.zip
22.02.2016 / 40.98 KB
CGOS API Library for the .NET Framework The CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.
CgosPy_1_3.zip
23.07.2024 / 655.40 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
Cgos_direct_Win10_Win11_3.0.0.zip
05.08.2024 / 49.24 MB
CGOS direct driver for Windows 10 and Windows 11. Please refer to readme.txt for supported functions and boards.
CGUTILm16.pdf
02.07.2020 / 2.67 MB
congatec System Utility Users Guide
CGUTLGUI_Qt_v100.zip
25.03.2019 / 30.28 MB
Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.0.0. Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
Important note: Only compatible with cgos 1.03.032 and older!
Chipset-10.1.19502.8391-Public-MUP.zip
19.11.2024 / 4.91 MB
Chipset driver version 10.1.19502.8391
HIDEventFilterDriver-2.2.1.386_v4_RS5_19H1_20H1_21H2_22H2_Certified.zip
19.11.2024 / 1.68 MB
Intel(R) HID Event Filter Driver Version 2.2.1.386_v4
Intel_CSME_SW_2410.5.64.0_Consumer.zip
19.11.2024 / 1,017.13 MB
CSME Consumer Driver: Version 2410.5.64.0
Intel_CSME_SW_2410.5.64.0_Corporate.zip
19.11.2024 / 1.17 GB
Intel(R) Management Engine Firmware for Windows 10/11 - 64 Bit
Intel_DTT-8.7.10802.26924.zip
19.11.2024 / 47.56 MB
Intel(R) Dynamic Tuning Technology Driver Version 8.7.10802.26924
RST_PV_18.7.6.1011.1_Win10_20H1-22H2_Win11_21H2.zip
04.07.2023 / 80.18 MB
Rapid Storage Technology Driver: Version 18.7.6.1011.1_Win10_20H1-22H2_Win11_21H2
SerialIO_30.100.2129.8_PV_TGL_PCH_Win11.zip
09.12.2021 / 2.65 MB
Serial IO Driver Version 30.100.2129.8
TBT_DCH_SW_Rev88.zip
04.07.2023 / 244.91 MB
Thunderbolt Driver Rev88; GATL, GBTL only;
win64-31.0.101.4091.zip
04.07.2023 / 725.50 MB
Intel(R) Graphics Driver: 31.0.101.4091 Windows 10 64Bit
win64-31.0.101.5186.zip
19.11.2024 / 680.06 MB
Intel(R) Graphics Driver: 31.0.101.5186 Windows 10/11 64Bit

yocto

README_Yocto-3-3-1-bsp.txt
20.10.2021 / 18.10 KB
Documentation for the congatec Yocto 3.3.1 BSP for x86 platforms. For sample images please contact congatec support.
README_Yocto-3-4-1-bsp.txt
01.06.2022 / 19.52 KB
Documentation for the congatec Yocto 3.4.1 BSP for x86 platforms. For sample images please contact congatec support.
README_Yocto-4-0-4-bsp.txt
21.03.2023 / 18.16 KB
Documentation for the congatec Yocto 4.0.4 BSP for x86 platforms. For sample images please contact congatec support.
README_Yocto-4-1-1-bsp.txt
21.03.2023 / 18.32 KB
Documentation for the congatec Yocto 4.1.1 BSP for x86 platforms. For sample images please contact congatec support.

Product Variants

Product Filter:

    Add Filter:

     -
     -
     -
     -
     -
     -
    There are 1,000's of possible configurations of our products, and therefore every possible configuration may not be shown with this tool.
    If you don't find the configuration you require contact your congatec Sales representative for further assistance.
    conga-TC570/i7-1185G7E (P/N 050300)

    COM Express Type 6 Compact module based on Intel® Core™ i7-1185G7E 4-core processor with 1.8GHz up to 4.4GHz turbo boost, 12MB cache, Intel® Iris® Xe Graphics with 96EU and dual channel DDR4 3200 MT/s memory interface (Intel Tiger Lake). Commercial temperature range.

    conga-TC570/i5-1145G7E (P/N 050301)

    COM Express Type 6 Compact module based on Intel® Core™ i5-1145G7E 4-core processor with 1.5GHz up to 4.1GHz turbo boost, 8MB cache, Intel® Iris® Xe Graphics with 80EU and dual channel DDR4 3200 MT/s memory interface (Intel Tiger Lake). Commercial temperature range.

    conga-TC570/i3-1115G4E (P/N 050302)

    COM Express Type 6 Compact module based on Intel® Core™ i3-1115G4E 2-core processor with 2.2GHz up to 3.9GHz turbo boost, 6MB cache, Intel® Iris® Xe Graphics with 48EU and dual channel DDR4 3200 MT/s memory interface (Intel Tiger Lake). Commercial temperature range.

    conga-TC570/6305E (P/N 050303)

    COM Express Type 6 Compact module based on Intel® Celeron® 6305E 2-core processor with 1.8GHz, 4MB cache, Intel® UHD Graphics with 48EU and dual channel DDR4 3200 MT/s memory interface (Intel Tiger Lake). Commercial temperature range.

    conga-TC570/i7-1185GRE (P/N 050310)

    COM Express Type 6 Compact module based on Intel® Core™ i7-1185GRE 4-core processor with 1.8GHz up to 4.4GHz turbo boost, 12MB cache, Intel® Iris® Xe Graphics with 96EU and dual channel DDR4 3200 MT/s memory interface (Intel Tiger Lake). Industrial temperature range.

    conga-TC570/i5-1145GRE (P/N 050311)

    COM Express Type 6 Compact module based on Intel® Core™ i5-1145GRE 4-core processor with 1.5GHz up to 4.1GHz turbo boost, 8MB cache, Intel® Iris® Xe Graphics with 80EU and dual channel DDR4 3200 MT/s memory interface (Intel Tiger Lake). Industrial temperature range.

    conga-TC570/i3-1115GRE (P/N 050312)

    COM Express Type 6 Compact module based on Intel® Core™ i3-1115GRE 2-core processor with 2.2GHz up to 3.9GHz turbo boost, 6MB cache, Intel® Iris® Xe Graphics with 48EU and dual channel DDR4 3200 MT/s memory interface (Intel Tiger Lake). Industrial temperature range.

    Ecosystem Details

    Cooling Solutions

    conga-TC570/CSA-HP-B (P/N 050350)

    Standard active cooling solution for high performance COM Express module conga-TC570 with integrated heat pipes, 25.5mm overall heat sink height and integrated 12V fan. All standoffs are with 2.7mm bore hole.

    conga-TC570/CSA-HP-T (P/N 050351)

    Standard active cooling solution for high performance COM Express module conga-TC570 with integrated heat pipes, 25.5mm overall heat sink height and integrated 12V fan. All standoffs are M2.5mm thread.

    conga-TC570/CSP-HP-B (P/N 050352)

    Standard passive cooling solution for high performance COM Express module conga-TC570 with integrated heat pipes, 24.3mm overall heat sink height. All standoffs are with 2.7mm bore hole.

    conga-TC570/CSP-HP-T (P/N 050353)

    Standard passive cooling solution for high performance COM Express module conga-TC570 with integrated heat pipes, 24.3mm overall heat sink height. All standoffs are M2.5mm thread.

    conga-TC570/HSP-HP-B (P/N 050354)

    Standard heatspreader for high performance COM Express module conga-TC570 with integrated heat pipes, 11mm overall heat sink height. All standoffs are with 2.7mm bore hole.

    conga-TC570/HSP-HP-T (P/N 050355)

    Standard heatspreader for high performance COM Express module conga-TC570 with integrated heat pipes, 11mm overall heat sink height. All standoffs are M2.5mm thread.

    Memory

    DDR4-SODIMM-3200 (4GB) (P/N 068793)

    DDR4 SODIMM memory module with 3200 MT/s and 4GB RAM

    DDR4-SODIMM-3200 (8GB) (P/N 068794)

    DDR4 SODIMM memory module with 3200 MT/s and 8GB RAM

    DDR4-SODIMM-3200 (16GB) (P/N 068798)

    DDR4 SODIMM memory module with 3200 MT/s and 16GB RAM

    DDR4-SODIMM-3200 (4GB) / i-temp (P/N 068825)

    DDR4 SODIMM memory module with up to 3200 MT/s and 4GB RAM, industrial temp -40°C to +85°C

    DDR4-SODIMM-3200 (8GB) / i-temp (P/N 068826)

    DDR4 SODIMM memory module with up to 3200 MT/s and 8GB RAM, industrial temp -40°C to +85°C

    Carrierboards

    conga-TEVAL2 (P/N 065810)

    Evaluation carrier board for COM Express Type6 Rev. 3.0 modules.

    Module services

    Design-In Training (P/N 27000001)

    Design-Training to develop carrier boards for Computer on Modules

    Conformal Coating COM Express Basic and Compact (P/N )

    HumiSeal® 1A33 coating for COM Express Basic and Compact modules; MIL-I-46058C qualified, IPC-CC-830 and
    RoHS Directive 2002/95/EC compliant and recognized under UL File Number E105698.

    Ext. temperature screening (-40°C to +85°C) (P/N )

    congatec Wide Temperature Range Screening
    Standard screening profile with 12h temperature screening and cold soak test
    Including functional test and several boot-ups (before & after screening)

    Ext. temperature screening (-25°C to +80°C) (P/N )

    congatec Wide Temperature Range Screening
    Standard screening profile with 12h temperature screening and cold soak test
    Including functional test and several boot-ups (before & after screening)

    Accessories

    More about conga-TEVAL/COMe 3.0

    conga-TEVAL/COMe 3.0

    Evaluation Carrier Board for COM Express® Type 6 Modules Rev. 3.0
