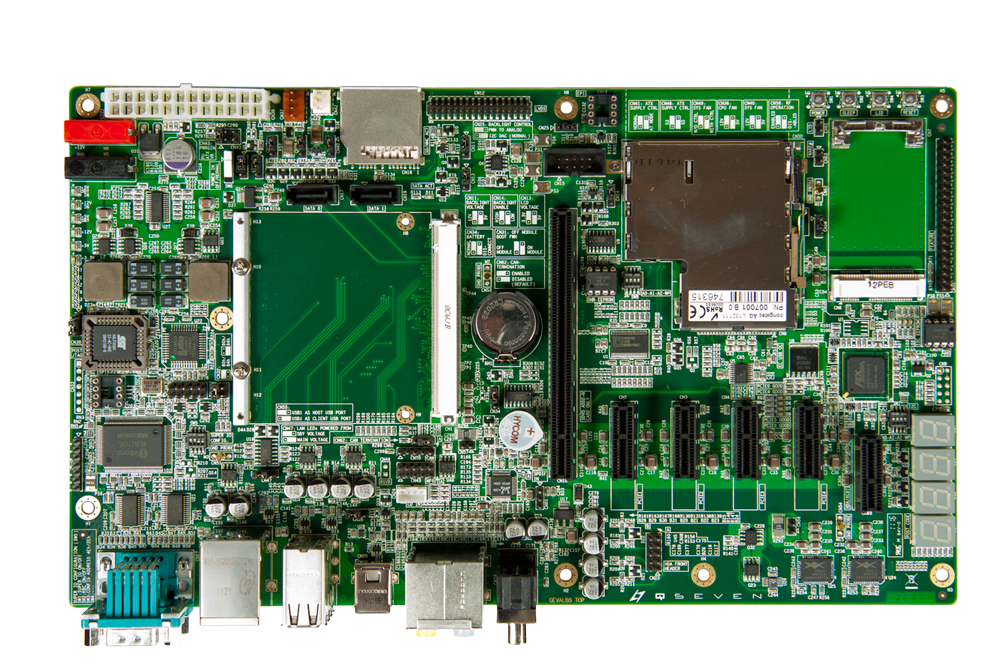

conga-QEVAL/Qseven 2.0

Per ottenere un avvio rapido con Qseven, congatec offre una scheda carrier di valutazione, che indirizza tutti i segnali Qseven ® ai connettori di interfaccia standard.

Selected module variant

    Selected ecosystem parts

    Carrierboards

      conga-QEVAL/Qseven 2.0

      Per ottenere un avvio rapido con Qseven, congatec offre una scheda carrier di valutazione, che indirizza tutti i segnali Qseven ® ai connettori di interfaccia standard.

      • Scheda Carrier Qseven di valutazione
      • Schemi disponibili
      • Riferimento per scheda carrier

      Specification


      • 4x PCIe x1 / 3x PCIe x1 and mini PCIe , 1x SDIO Card Socket
      • Gigabit Ethernet, up to 8x USB 2.0, up to 2x USB 3.0, USB Client, 1x CAN
      • 5.1 Audio, Microphone, Line In, potical S/PDIF Out
      • MIC, Line In, Line Out, SPDIF
      • 2 x SATA
      • Power button, Reset button, LID button, Sleep button
      • External BIOS flash
      • LPC header, SPI header, 3pin or 4pin FAN
      • I²C EEPROM, Aux. signals for battery management
      • 1x Dual Channel LVDS, HDMI or Display Port
      • Backlight control
      • 12 V single power input, ATX power input connector, CMOS battery

      Documents

      All documents found on this page are updated without notification. Always check this page for the latest version.


      15.06.2015
      15.06.2015
      15.06.2015
      15.06.2015

      Data Sheet

      Software

      Windows 7

      High Definition Audio Codec driver for Realtek chips. For Windows 7/8 32Bit Rev. 2.70.
      High Definition Audio Codec driver for Realtek chips. For Windows 7/8 64Bit Rev. 2.70.

      Windows 8

      High Definition Audio Codec driver for Realtek chips. For Windows 7/8 32Bit Rev. 2.70.
      High Definition Audio Codec driver for Realtek chips. For Windows 7/8 64Bit Rev. 2.70.

      Ecosystem Details

      Carrierboards

      conga-QEVAL/Qseven 2.0 x86 (P/N 007003)

      Evaluation carrier board for Qseven 2.0 modules based on x86 architecture.

      conga-QEVAL/Qseven 2.0 ARM (P/N 007005)

      Evaluation carrier board for Qseven 2.0 modules based on ARM architecture.

      Accessories

      More about conga-LDVI

      conga-LDVI

      Covertitore di moduli DVI perLVDS

      More about conga-DP/HDMI 4k Adapter

      conga-DP/HDMI 4k Adapter

      DP++ to HDMI evaluation adapter for development purpose
