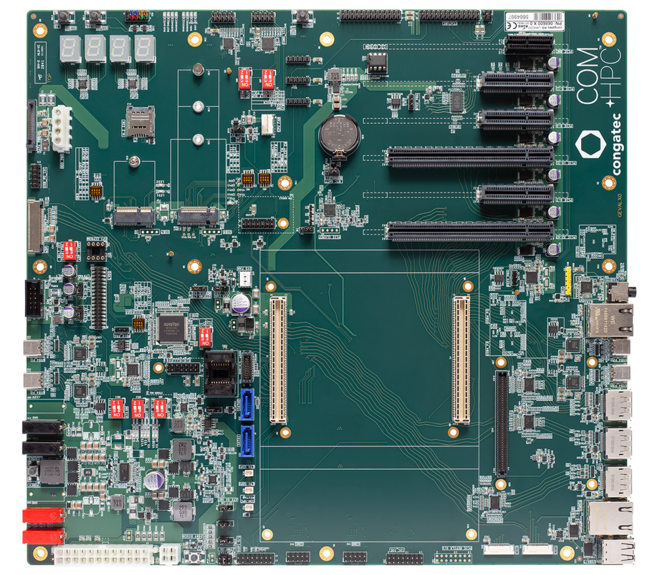

conga-HPC/EVAL-Client

Evaluation Carrier Board for COM-HPC Client Type Modules

Selected module variant

    Selected ecosystem parts

    Carrierboards

      conga-HPC/EVAL-Client

      Evaluation Carrier Board for COM-HPC Client Type Modules

      • Evaluation Carrier Board for COM-HPC Client Type Modules
      • Routing of the entire signals provided by COM-HPC Module Base Specification R1.0 to standard interface connectors

      Specification


      Formfactor

      Extended ATX


      Board Variant

      Evaluation Carrier Board for COM-HPC Client Type Modules (Sizes A, B, C)


      Internal Connectors and Features

      • 2x PCIe Gen4 x16
      • 3x PCIe Gen4 x4
      • 1x BMC PCIe x1
      • 2x USB4
      • 1x M.2 Key B 2242 (USB2, 2x PCIe)
      • 1x M.2 Key E 2230 (USB2, 2x PCIe)
      • 1x two-lane KR connector to connect Mezzanine Cards for LAN options
      • 1x eDP
      • 1x DMIC header
      • 1x I2S SNDW header
      • 2x MIPI CSI
      • 2x SATA
      • 1x SATA Power
      • 1x Disk Drive Power
      • 4x COM (2x via SIO)
      • 1x GPSPI header
      • 1x I2C header
      • 1x SMB header
      • 1x GPIO header
      • 1x Feature header
      • 1x System Fan
      • 1x CPU Fan

      External Connectors

      • 1x Dual USB 2
      • 3x DP++
      • 2x 10GbE RJ45
      • 4x USB 4

      Postcode

      4x 7-Segment Postcode LEDs connected to PD I2C


      Power Input

      • 1x ATX standard power input 24pin
      • 1x ATX power 12V power input 4pin
      • 1x AT power input DC In 8-20Vmax (via 4x banana jacks)

      Operating Temperature

      Operating Temp.: 0°C … +60°C | Storage Temp.: -20°C … +70°C


      Humidity

      Operating Hum.: 10% … 85% r. H. non cond. | Storage Hum.: 5% … 85% r. H. non cond.


      Size

      304.8 x 330.2 mm (approx. 12 x 13 inches)
