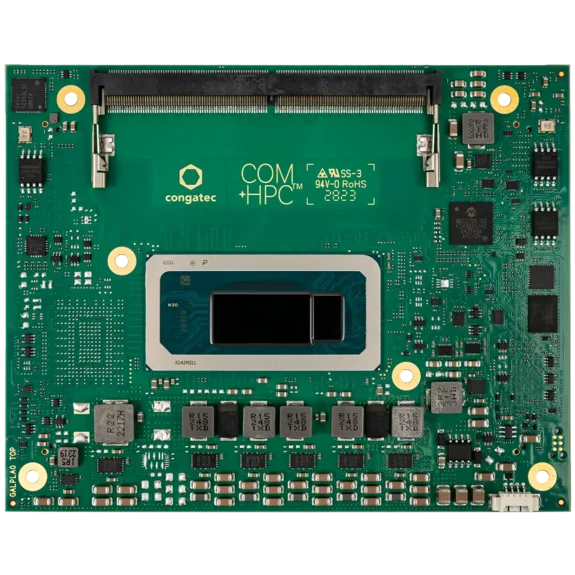

conga-HPC/cRLP Preview image

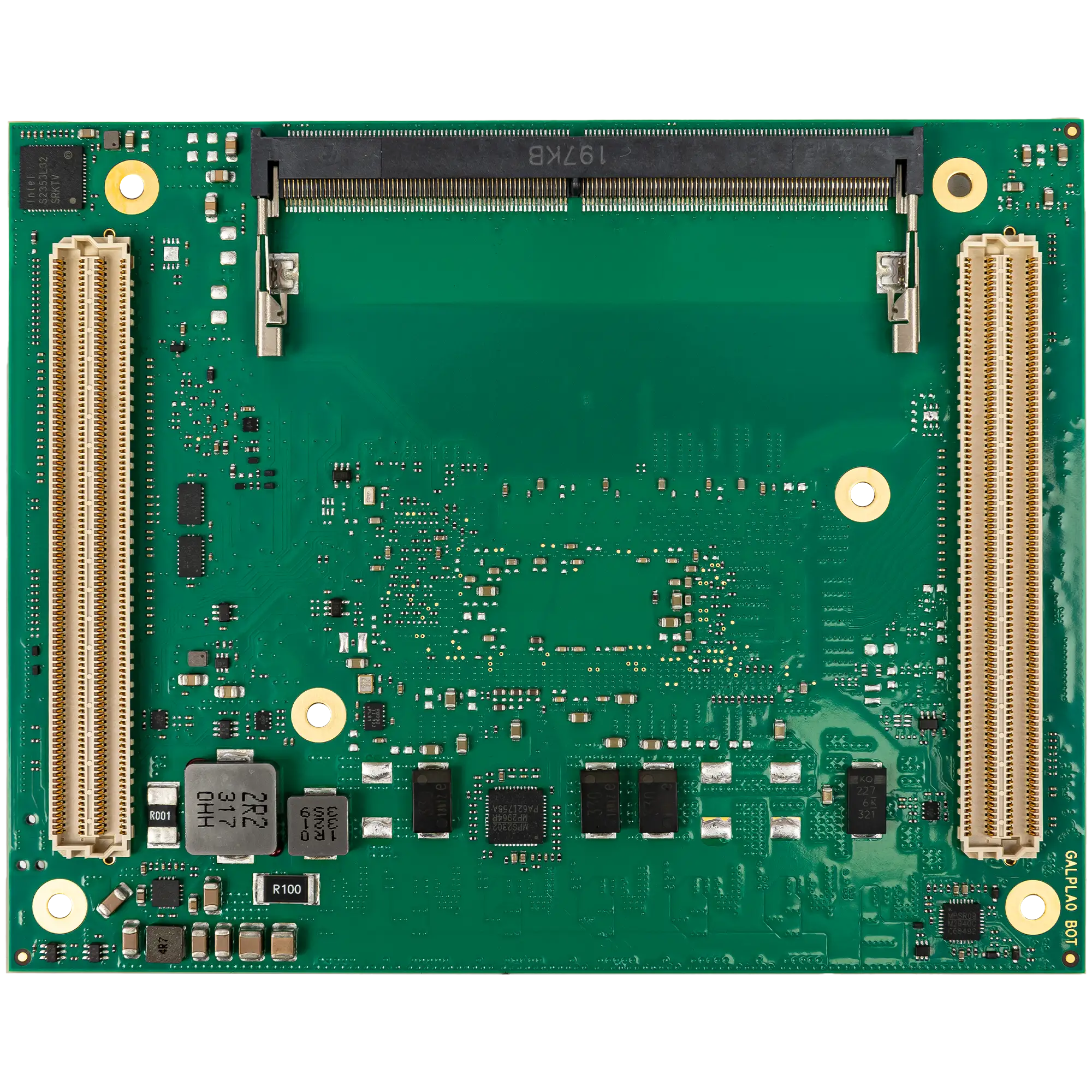

  • conga-HPC/cRLP Image 1

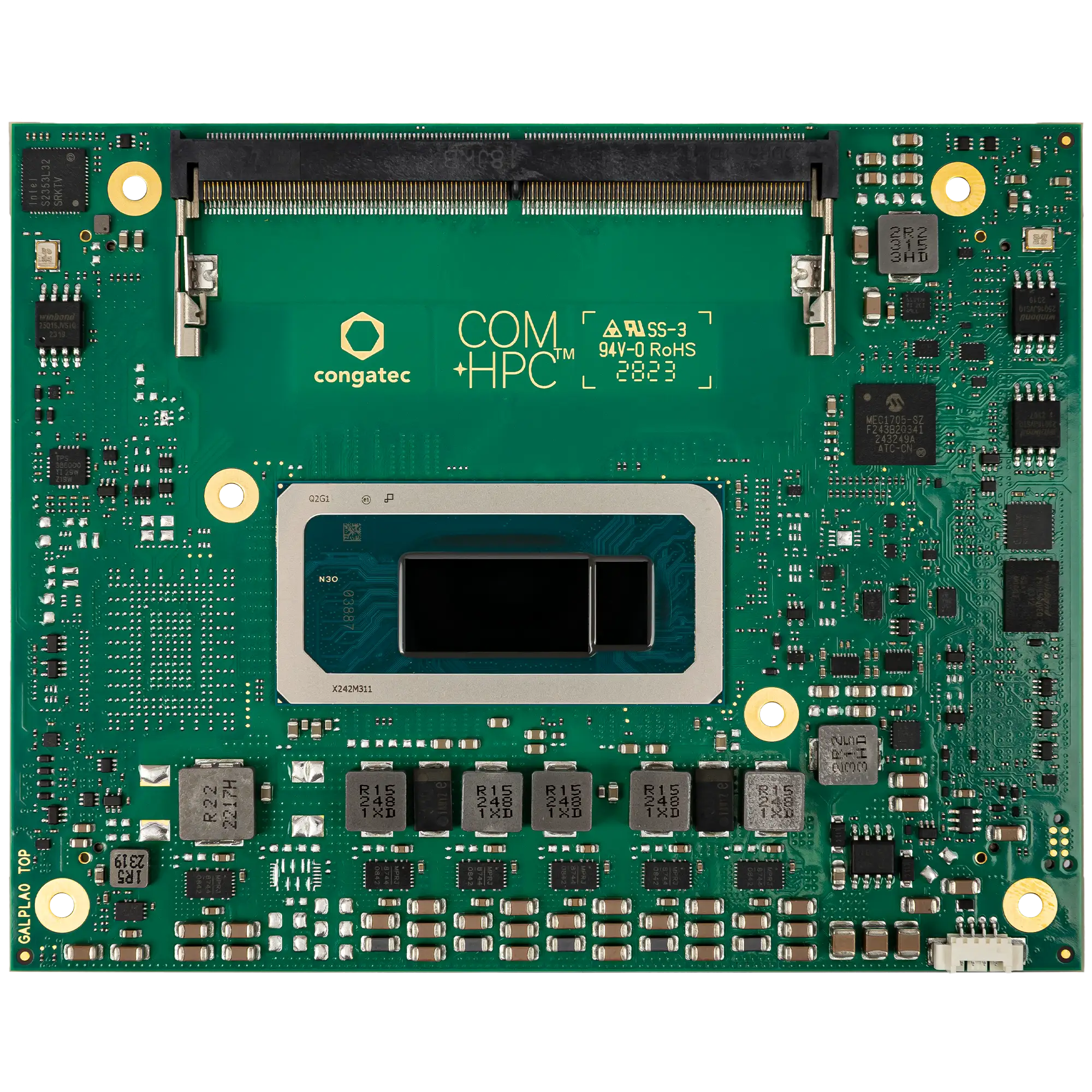

  • conga-HPC/cRLP Image 2

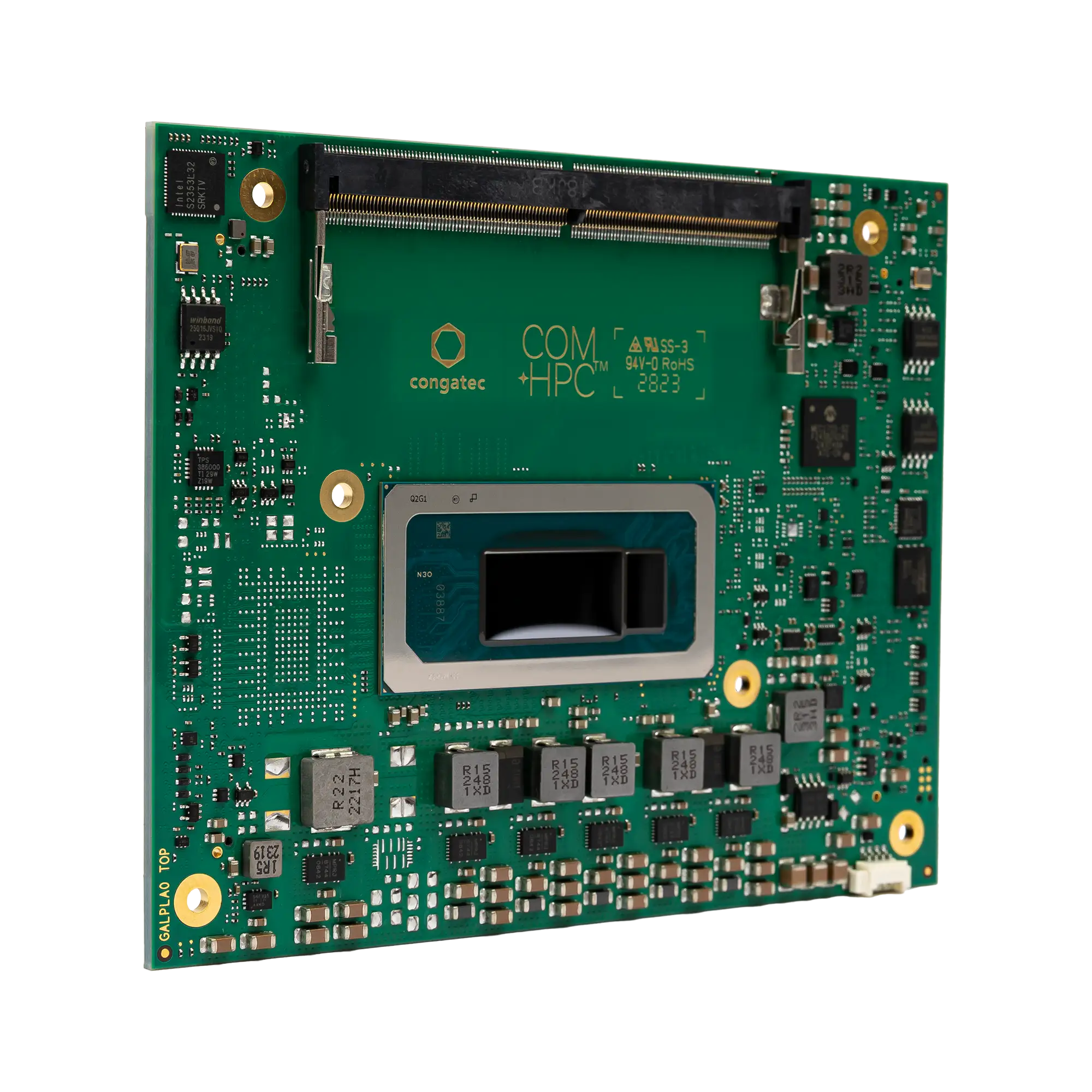

  • conga-HPC/cRLP Image 3

Your item has been added to the inquiry

conga-HPC/cRLP Image

conga-HPC/cRLP

COM-HPC Client Size A high performance module based on 13th Gen Intel® Core™ processor series (code name "Raptor Lake")

Selected module variant

Value adding ecosystem offerings


Virtualization

Operating Systems

Cooling Solutions

Carrierboards

Module services

Memory

Request quote + Add more articles

conga-HPC/cRLP

COM-HPC Client Size A high performance module based on 13th Gen Intel® Core™ processor series (code name "Raptor Lake")

Virtualization Ready
  • Intel® hybrid design combines Performance-cores with Efficient–cores
  • Up to Intel® Iris® Xe Graphics architecture with up to 96 EUs
  • Up to PCI Express Gen 5
  • Options for Industrial Temperature Range -40°C to +85°C
Congatec Logo
Do you want to add further ecosystem parts (carrier boards, memory,...) to your request?

Value adding ecosystem offerings

Virtualization

Operating Systems

Cooling Solutions

Carrierboards

Module services

Memory

Specification

Formfactor
COM-HPC
CPU
Intel® Core™ i7-13800HE (6 P-cores 2.5GHz up to 5.0GHz, 8 E-cores 1.8GHz up to 4.0GHz, 24MB cache, 45W)
Intel® Core™ i7-1370PE (6 P-cores 1.9GHz up to 4.8GHz, 8 E-cores 1.2GHz up to 3.7GHz, 24MB cache, 28W)
Intel® Core™ i7-1365UE (2 P-cores 1.7GHz up to 4.9GHz, 8 E-cores 1.2GHz up to 3.7GHz, 12MB cache, 15W)
Intel® Core™ i7-13800HRE (6 P-cores 2.5GHz up to 5.0GHz, 8 E-cores 1.8GHz up to 4.0GHz, 24MB cache, 45W)
Intel® Core™ i7-1370PRE (6 P-cores 1.9GHz up to 4.8GHz, 8 E-cores 1.2GHz up to 3.7GHz, 24MB cache, 28W)
Intel® Core™ i7-1365URE (2 P-cores 1.7GHz up to 4.9GHz, 8 E-cores 1.2GHz up to 3.7GHz, 12MB cache, 15W)
Intel® Core™ i5-1350PRE (4 P-cores 1.8GHz up to 4.6GHz, 8 E-cores 1.3GHz up to 3.4GHz, 12MB cache, 28W)
Intel® Core™ i5-1340PE (4 P-cores 1.8GHz up to 4.5GHz, 8 E-cores 1.3GHz up to 3.3GHz, 12MB cache, 28W)
Intel® Core™ i3-1315UE (2 P-cores 1.2GHz up to 4.5GHz, 4 E-cores 0.9GHz up to 3.3GHz, 10MB cache, 15W)
DRAM
2 SO-DIMM sockets for DDR5 memory modules up to 48 GB RAM each (max. 96 GB RAM system capacity) |up to 5200 MT/s
Ethernet
2 x 2.5 GbE with TSN support via Intel® i226 Ethernet controller series
I/O Interfaces
8 x PCIe Gen5 (only available on variants based on RPL-P H series)
2 x4 PCIe Gen4
up to 8 PCIe Gen3
2 x USB4
2 x USB 3.2 Gen2x1
Up to 8x USB 2.0
up to 2x SATA
2 x UART
12 x GPIOs
eSPI
SM-Bus
I²C bus
GSPI
Mass storage
NVMe x1 SSD (optional)
Graphics
Intel® UHD Graphics or Intel® Iris® Xe Graphics architecture | up to 80 EUs
congatec Board Controller
Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control | Hardware Health Monitoring | POST Code redirection
embedded BIOS Features
AMI Aptio UEFI
32 MByte serial SPI firmware flash
OEM Logo
OEM CMOS Defaults
LCD Control
Display Auto Detection
Backlight Control
Flash Update
Security
Trusted Platform Module (TPM 2.0)
Power Management
ACPI 6.0 with battery support
Operating Systems
Microsoft® Windows 11
Microsoft® Windows 11 IoT Enterprise
Microsoft® Windows® 10
Microsoft® Windows 10 IoT Enterprise
Linux
Yocto
Hypervisor
RTS Real-Time Hypervisor
Temperature
Commercial variants: Operation: 0° to +60°C | Storage: -20° to +80°C
Industrial variants: Operation: -40° to +85°C | Storage: -40° to +85°C
Humidity
Operating: 10 to 85% r. H. non cond. / Storage 5 to 85% r. H. non cond.
Video Interfaces
3x DDI | eDP
Size
95 x 120 mm

Documents

All documents found on this page are updated without notification. Always check this page for the latest version.

Data Sheet

Data Sheet for conga-HPC/cRLP
01.08.2024

Manual

User's Guide for conga-HPC/cRLP
02.07.2024

Software

[ EFI ]      [ Linux ]      [ Windows 10 ]      [ Windows 10 IoT ]      [ Windows 11 ]

EFI

cgutlcmd_efi_1.7.0.1.zip
01.08.2024 / 2.12 Mo
congatec System Utility Rev. 1.7.0.1. for EFI shell. Use for BIOS update or customization and panel configuration.

Linux

CGOSAPIm14.pdf
04.04.2017 / 1.07 Mo
CGOS API programmers manual
cgoslx-x64-1.03.032.tar.xz
09.05.2022 / 52.03 Ko
CGOS legacy driver 1.03.032 for 64bit Linux (Kernel version 3.x, 4.x, 5.x and 6.x). For kernel versions >= 5.8 please refer to readme.txt and/or consider using the cgoslx-x64-1.03.032_vmalloc.tar.xz package.
cgoslx-x64-1.03.032_vmalloc.tar.xz
09.05.2022 / 52.74 Ko
CGOS legacy driver 1.03.032 for 64bit Linux (Kernel versions 5.8 or higher). Modified driver package with Kernel patch as a workaround for memory allocation issues with Kernels >= 5.8
CgosPy_1_3.zip
23.07.2024 / 655.40 Ko
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
CGOS_DIRECT_Lx_R3.0.2.zip
19.12.2024 / 186.40 Ko
CGOS direct driver for Linux.
cgutillx.tar
04.07.2023 / 3.93 Mo
congatec System Utility Rev. 1.6.2
Use for BIOS update or customization and panel configuration. Linux source version.
Important note: Only compatible with cgos 1.03.032 and older!
cgutlcmd_linux_1.7.0.1.zip
01.08.2024 / 2.32 Mo
congatec System Utility Rev. 1.7.0.1. for Linux. Use for BIOS update or customization and panel configuration. Only compatible with cgos direct 3.0.0 and newer!
CGUTLGUI_Qt_v100.zip
25.03.2019 / 30.28 Mo
Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.0.0. Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
Important note: Only compatible with cgos 1.03.032 and older!

Windows 10

CgMlfTools_2019_10_24.zip
25.03.2024 / 16.68 Mo
The congatec Menu Layout File Viewer (CgMlfViewer) and the congatec Menu Layout File Editor (CgMlfEditor) are Qt based applications meant to read Menu Layout Files (*.mlf) created by a congatec BIOS, to display all setup nodes and options and for the CgMlfEditor also to edit them.
CgMlfViewer_v100_bin.zip
25.10.2019 / 7.99 Mo
The congatec Menu Layout File Viewer (CgMlfViewer) is a Qt based application meant to read Menu Layout Files (*.mlf) created by a congatec BIOS and to display all setup nodes and options.
Cgos-x64-Windows10.zip
05.09.2021 / 225.62 Ko
CGOS legacy driver 1.03.021 for 64bit Windows 10/11 only.
CGOSAPIm14.pdf
04.04.2017 / 1.07 Mo
CGOS API programmers manual
CgosClr.zip
22.02.2016 / 40.98 Ko
CGOS API Library for the .NET Framework The CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.
CgosPy_1_3.zip
23.07.2024 / 655.40 Ko
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
Cgos_direct_Win10_Win11_3.0.0.zip
05.08.2024 / 49.24 Mo
CGOS direct driver for Windows 10 and Windows 11. Please refer to readme.txt for supported functions and boards.
cgutlcmd_win_1.7.0.1.zip
01.08.2024 / 18.41 Mo
congatec System Utility Rev. 1.7.0.1. for Windows. Use for BIOS update or customization and panel configuration. Important note: Only compatible with cgos direct 3.0.0 and newer!
CGUTLGUI_Qt_v100.zip
25.03.2019 / 30.28 Mo
Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.0.0. Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
Important note: Only compatible with cgos 1.03.032 and older!
Chipset-10.1.19198.8339-Public-MUP.zip
24.03.2023 / 4.45 Mo
Intel Chipset Software Installation Utility for installing the Windows* INF files. Rev. 10.1.19198.8339
gna-03.00.00.1457-Win11-rpl-20h2-21h1-22h2-resign2-20221031.zip
29.02.2024 / 56.02 Ko
Intel GNA Scoring Accelerator 03.00.00.1457
HIDEventFilterDriver-2.2.1.386_v4_RS5_19H1_20H1_21H2_22H2_Certified.zip
19.11.2024 / 1.68 Mo
Intel(R) HID Event Filter Driver Version 2.2.1.386_v4
Intel_CSME_SW_2321.4.31.0_Consumer.zip
29.02.2024 / 1.08 Go
Intel Management Engine Consumer driver 2321.4.31.0
Intel_CSME_SW_2321.4.31.0_Corporate.zip
29.02.2024 / 979.24 Mo
Intel Management Engine driver Corporate 2321.4.31.0
Intel_DTT_9.0.11000.27915.zip
24.03.2023 / 78.44 Mo
Intel(R) Dynamic Tuning Technology Driver Version 9.0.11000.27915
Intel_SST_ADL_v10.29.00.7919.zip
24.03.2023 / 292.05 Mo
Intel smart sound driver version 10.29.00.7919
ISH_Kit_5.4.2.4582v3.zip
24.03.2023 / 92.24 Mo
Intel Sensor HUB for Windows 10 - 5.4.2.4582v3
Release_28.2.zip
29.02.2024 / 776.58 Mo
Intel Ethernet Driver Version 28.2
RST_PV_19.5.0.1037.2_Win11SV2_Win1020H2.zip
24.03.2023 / 109.22 Mo
Rapid Storage Technology Driver: Version 19.5.0.1037.2
SerialIO_30.100.2221.20v2_RPL_ADL-PCH_22H2.zip
24.03.2023 / 2.65 Mo
Intel Serial IO Drivers 30.100.2221.20v2
TBT_DCH_SW_Rev87_2.zip
24.03.2023 / 242.26 Mo
Thunderbolt Driver Rev87.2

Windows 10 IoT

CgosPy_1_3.zip
23.07.2024 / 655.40 Ko
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
cgutlcmd_win_1.7.0.1.zip
01.08.2024 / 18.41 Mo
congatec System Utility Rev. 1.7.0.1. for Windows. Use for BIOS update or customization and panel configuration. Important note: Only compatible with cgos direct 3.0.0 and newer!

Windows 11

CgMlfTools_2019_10_24.zip
25.03.2024 / 16.68 Mo
The congatec Menu Layout File Viewer (CgMlfViewer) and the congatec Menu Layout File Editor (CgMlfEditor) are Qt based applications meant to read Menu Layout Files (*.mlf) created by a congatec BIOS, to display all setup nodes and options and for the CgMlfEditor also to edit them.
CgMlfViewer_v100_bin.zip
25.10.2019 / 7.99 Mo
The congatec Menu Layout File Viewer (CgMlfViewer) is a Qt based application meant to read Menu Layout Files (*.mlf) created by a congatec BIOS and to display all setup nodes and options.
CgosClr.zip
22.02.2016 / 40.98 Ko
CGOS API Library for the .NET Framework The CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.
CgosPy_1_3.zip
23.07.2024 / 655.40 Ko
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
Cgos_direct_Win10_Win11_3.0.0.zip
05.08.2024 / 49.24 Mo
CGOS direct driver for Windows 10 and Windows 11. Please refer to readme.txt for supported functions and boards.
CGUTLGUI_Qt_v100.zip
25.03.2019 / 30.28 Mo
Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.0.0. Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
Important note: Only compatible with cgos 1.03.032 and older!
gna-03.00.00.1457-Win11-rpl-20h2-21h1-22h2-resign2-20221031.zip
29.02.2024 / 56.02 Ko
Intel GNA Scoring Accelerator 03.00.00.1457
HIDEventFilterDriver-2.2.1.386_v4_RS5_19H1_20H1_21H2_22H2_Certified.zip
19.11.2024 / 1.68 Mo
Intel(R) HID Event Filter Driver Version 2.2.1.386_v4
Intel_CSME_SW_2321.4.31.0_Consumer.zip
29.02.2024 / 1.08 Go
Intel Management Engine Consumer driver 2321.4.31.0
Intel_CSME_SW_2321.4.31.0_Corporate.zip
29.02.2024 / 979.24 Mo
Intel Management Engine driver Corporate 2321.4.31.0
Release_28.2.zip
29.02.2024 / 776.58 Mo
Intel Ethernet Driver Version 28.2
RST_PV_19.5.0.1037.2_Win11SV2_Win1020H2.zip
24.03.2023 / 109.22 Mo
Rapid Storage Technology Driver: Version 19.5.0.1037.2
TBT_DCH_SW_Rev87_2.zip
24.03.2023 / 242.26 Mo
Thunderbolt Driver Rev87.2

Product Variants

Product Filter:

    Add Filter:

     -
     -
     -
     -
     -
     -
    There are 1,000's of possible configurations of our products, and therefore every possible configuration may not be shown with this tool.
    If you don't find the configuration you require contact your congatec Sales representative for further assistance.
    conga-HPC/cRLP-i7-13800HE (P/N 045500)

    COM-HPC Size A module based on Intel® Core™ i7-13800HE processor with 6 P-cores 2.5GHz up to 5.0GHz Turbo and 8 E-cores 1.8GHz up to 4.0GHz Turbo | 24MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 96 EUs | Dual channel DDR5 5200 MT/s memory interface | Intel® code name Raptor Lake-P (H-Series)

    conga-HPC/cRLP-i7-1370PE (P/N 045501)

    COM-HPC Size A module based on Intel® Core™ i7-1370PE processor with 6 P-cores 1.9GHz up to 4.8GHz Turbo and 8 E-cores 1.2GHz up to 3.7GHz Turbo | 24MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 96 EUs | Dual channel DDR5 5200 MT/s memory interface | Intel® code name Raptor Lake-P (P-Series)

    conga-HPC/cRLP-i7-1365UE (P/N 045502)

    COM-HPC Size A module based on Intel® Core™ i7-1365UE processor with 2 P-cores 1.7GHz up to 4.9GHz Turbo and 8 E-cores 1.2GHz up to 3.7GHz Turbo | 12MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 96 EUs | Dual channel DDR5 5200 MT/s memory interface | Intel® code name Raptor Lake-P (U-Series)

    conga-HPC/cRLP-i7-13800HRE (P/N 045510)

    COM-HPC Size A module based on Intel® Core™ i7-13800HRE processor with 6 P-cores 2.5GHz up to 5.0GHz Turbo and 8 E-cores 1.8GHz up to 4.0GHz Turbo | 24MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 96 EUs | Dual channel DDR5 5200 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (H-Series)

    conga-HPC/cRLP-i7-1370PRE (P/N 045511)

    COM-HPC Size A module based on Intel® Core™ i7-1370PRE processor with 6 P-cores 1.9GHz up to 4.8GHz Turbo and 8 E-cores 1.2GHz up to 3.7GHz Turbo | 24MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 96 EUs | Dual channel DDR5 5200 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (P-Series)

    conga-HPC/cRLP-i7-1365URE (P/N 045512)

    COM-HPC Size A module based on Intel® Core™ i7-1365URE processor with 2 P-cores 1.7GHz up to 4.9GHz Turbo and 8 E-cores 1.2GHz up to 3.7GHz Turbo | 12MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 96 EUs | Dual channel DDR5 5200 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (U-Series)

    conga-HPC/cRLP-i5-1350PRE (P/N 045514)

    COM-HPC Size A module based on Intel® Core™ i5-1350PRE processor with 4 P-cores 1.8GHz up to 4.6GHz Turbo and 8 E-cores 1.3GHz up to 3.4GHz Turbo | 12MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 80 EUs | Dual channel DDR5 5200 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (P-Series)

    conga-HPC/cRLP-i5-1340PE (P/N 045504)

    COM-HPC Size A module based on Intel® Core™ i5-1340PE processor with 4 P-cores 1.8GHz up to 4.5GHz Turbo and 8 E-cores 1.3GHz up to 3.3GHz Turbo | 12MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 80 EUs | Dual channel DDR5 5200 MT/s memory interface | Intel® code name Raptor Lake-P (P-Series)

    conga-HPC/cRLP-i3-1315UE (P/N 045508)

    COM-HPC Size A module based on Intel® Core™ i3-1315UE processor with 2 P-cores 1.2GHz up to 4.5GHz Turbo and 4 E-cores 0.9GHz up to 3.3GHz Turbo | 10MB Intel® Smart Cache | Intel® UHD Graphics with 64EUs | Dual channel DDR5 5200 MT/s memory interface | Intel® code name Raptor Lake-P (U-Series)

    Ecosystem Details

    Virtualization

    RTS Hypervisor (P/N 300501)

    Operating Systems

    ctrlX OS (P/N )
    Ubuntu Pro (P/N N/A)

    Cooling Solutions

    conga-HPC/cALP-CSA-HP-B (P/N 049550)

    Standard active cooling solution for COM-HPC module conga-HPC/cALP and conga-HPC/cRLP with integrated heat pipes, 29mm height and integrated 12V fan. All standoffs are with 2.7mm bore hole.

    conga-HPC/cALP-CSA-HP-T (P/N 049551)

    Standard active cooling solution for COM-HPC module conga-HPC/cALP and conga-HPC/cRLP with integrated heat pipes, 29mm height and integrated 12V fan. All standoffs are M2.5mm threaded.

    conga-HPC/cALP-CSP-HP-B (P/N 049552)

    Standard passive cooling solution for COM-HPC module conga-HPC/cALP and conga-HPC/cRLP with integrated heat pipes, 28.2mm height. All standoffs are with 2.7mm bore hole.

    conga-HPC/cALP-CSP-HP-T (P/N 049553)

    Standard passive cooling solution for COM-HPC module conga-HPC/cALP and conga-HPC/cRLP with integrated heat pipes, 28.2mm height. All standoffs are M2.5mm threaded.

    conga-HPC/cALP-HSP-HP-B (P/N 049554)

    Standard heatspreader for COM-HPC module conga-HPC/cALP and conga-HPC/cRLP with integrated heat pipes, 13mm height. All standoffs are with 2.7mm bore hole.

    conga-HPC/cALP-HSP-HP-T (P/N 049555)

    Standard heatspreader for COM-HPC module conga-HPC/cALP and conga-HPC/cRLP with integrated heat pipes, 13mm height. All standoffs are M2.5mm threaded.

    Carrierboards

    conga-HPC/uATX-Client (P/N 065620)

    COM-HPC Client µATX Application Carrier Board suitable for congatec COM-HPC modules with Size A,B and C.

    conga-HPC/EVAL-Client (P/N 065600)

    Evaluation Carrier Board for COM-HPC Client type Modules.

    Module services

    Design-In Training (P/N 27000001)

    Design-Training to develop carrier boards for Computer on Modules

    Ext. temperature screening (-40°C to +85°C) (P/N )

    congatec Wide Temperature Range Screening
    Standard screening profile with 12h temperature screening and cold soak test
    Including functional test and several boot-ups (before & after screening)

    Ext. temperature screening (-25°C to +80°C) (P/N )

    congatec Wide Temperature Range Screening
    Standard screening profile with 12h temperature screening and cold soak test
    Including functional test and several boot-ups (before & after screening)

    Memory

    DDR5-SODIMM-5600 (8GB) (P/N 068930)

    DDR5 SODIMM memory module with up to 5600 MT/s and 8GB RAM, commercial temp 0°C to +60°C

    DDR5-SODIMM-5600 (16GB) (P/N 068931)

    DDR5 SODIMM memory module with up to 5600 MT/s and 16GB RAM, commercial temp 0°C to +60°C

    DDR5-SODIMM-5600 (32GB) (P/N 068932)

    DDR5 SODIMM memory module with up to 5600 MT/s and 32GB RAM, commercial temp 0°C to +60°C

    DDR5-SODIMM-5600 (48GB) (P/N 068933)

    DDR5 SODIMM memory module with up to 5600 MT/s and 48GB RAM, commercial temp 0°C to +60°C

    DDR5-SODIMM-5600 (8GB) / i-temp (P/N 068935)

    DDR5 SODIMM memory module with up to 5600 MT/s and 8GB RAM, industrial temp -40°C to +85°C

    DDR5-SODIMM-5600 (16GB) / i-temp (P/N 068936)

    DDR5 SODIMM memory module with up to 5600 MT/s and 16GB RAM, industrial temp -40°C to +85°C

    DDR5-SODIMM-5600 (32GB) / i-temp (P/N 068937)

    DDR5 SODIMM memory module with up to 5600 MT/s and 32GB RAM, industrial temp -40°C to +85°C

    DDR5-SODIMM-5600 (48GB) / i-temp (P/N 068938)

    DDR5 SODIMM memory module with up to 5600 MT/s and 48GB RAM, industrial temp -40°C to +85°C

    Accessories

    More about conga-HPC/EVAL-Client

    conga-HPC/EVAL-Client

    Evaluation Carrier Board for COM-HPC Client Type Modules

    More about conga-HPC/uATX-Client

    conga-HPC/uATX-Client

    Application Carrier Board for COM-HPC Client Type Modules (Sizes A, B, C)
