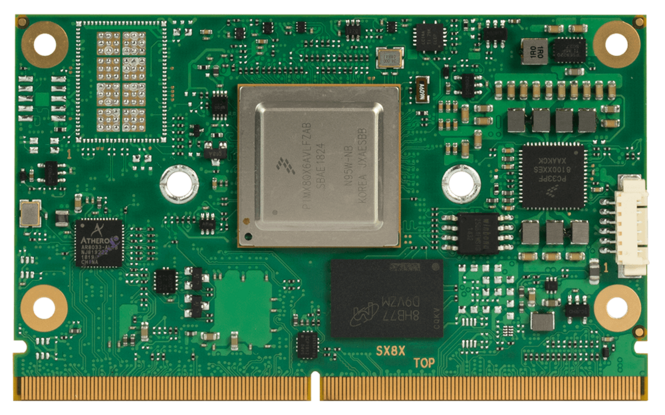

conga-SMX8X

SMARC 2.0 module based on Ultra Low Power NXP i.MX8-X series

  • NXP i.MX8-X ARM Cortex-A35 and Cortex-M4F
  • Ultra Low Power 2-5W
  • Industrial grade, improved Reliability and Virtualization
  • 3D Graphics up to two independent HD displays
  • MIPI CSI-2 camera interface
Congatec Logo
Do you want to add further ecosystem parts (carrier boards, memory,...) to your request?

Value adding ecosystem offerings

Cooling Solutions

Carrierboards

Module services

Specification

Formfactor
SMARC
CPU
NXP i.MX8 QuadXPlus (4, ARM Cortex-A35, 1x ARM Cortex-M4F, 4W)
DRAM
Up to 4 GByte onboard LPDDR4 memory | 2400 MT/s
Ethernet
2 x Gigabit Ethernet
I/O Interfaces
5 x USB 2.0 (shared with 1x USB OTG client)
GPIOs
2 x FlexCAN
up to 4x UART (2x with Handshake (1x shared with FlexCAN)
USB 2.0
1 x eSPI
1 x SPI
I²C bus
1 x PCI Express™ 3.0 lanes
1 x SDIO 3.0
1 x USB 3.0
optional M.2 1216 WiFi module (soldered down)
Graphics
Integrated in NXP i.MX8-X Series single GT7000Lite multimedia GPU
VPU up to 4K h.265 dec / 1080p h.264 enc/dec) | 3D Graphics with up to 4 high performance vec4 shaders and 16 execution units up to 2 independent displays | OpenGL ES 3.1 | Vulcan VX extensions | OpenCL 1.2 EP | OpenVG 1.1i
Security
High Assurance Boot support | Inline Encryption Engine (AES-128) TNG, AES-128, AES-256, 3DES, ARC4, RSA4096, SHA-1, SHA-2, SHA-256, MD-5 | RSA-1024, 2048, 3072, 4096
Operating Systems
Android
Linux
Yocto
Video Interfaces
1 x dual channel or 2x single channel LVDS 24 bit | 2x MIPI-DSI with 4-lanes shared with LVDS | 1x MIPI-CSI 4-lanes
Size
82 x 50 mm (3,23” x 1,97”)

Documents

All documents found on this page are updated without notification. Always check this page for the latest version.

Data Sheet

Data Sheet for conga-SMX8X
30.10.2024

Manual

User's Guide for conga-SMX8X
30.10.2024
conga-SMX8X software Documentation

Software

[ Android ]      [ yocto ]

Android

Link
In order to fetch and build the Yocto-/Android-BSP for conga-SMX8-X, please follow:
https://wiki.congatec.com/display/IMX8DOC/BSPs+conga-SMX8-X

yocto

Link
In order to fetch and build the Yocto-/Android-BSP for conga-SMX8-X, please follow:
https://wiki.congatec.com/display/IMX8DOC/BSPs+conga-SMX8-X

Product Variants

Product Filter:

    Add Filter:

     -
     -
     -
     -
     -
     -
      There are 1,000's of possible configurations of our products, and therefore every possible configuration may not be shown with this tool.
      If you don't find the configuration you require contact your congatec Sales representative for further assistance.
      conga-SMX8-X/i-QXP-4G eMMC16 (P/N 051110)

      SMARC 2.0 module ultra low power NXP i.MX8 QuadXPlus processor with 4x ARM Cortex-A35 and 1x ARM Cortex-M4F, 4GB onboard LPDDR4 memory and 16GB onboard eMMC. Industrial temperature range.

      conga-SMX8-X/i-QXP-2G eMMC16 (P/N 051113)

      SMARC 2.0 module with ultra low-power NXP i.MX8-X QuadXPlus processor with 4x ARM Cortex-A35 and 1x ARM Cortex-M4F, 2GB onboard LPDDR4 memory and 16GB onboard eMMC. Industrial temperature range.

      Ecosystem Details

      Cooling Solutions

      conga-SMX8-X/i-CSP-B (P/N 051150)

      Passive cooling solution for SMARC module conga-SMX8-X with lidded NXP i.MX 8X ARM processor. All standoffs are with 2.7mm bore hole.

      conga-SMX8-X/i-HSP-B (P/N 051151)

      Heat spreader solution for SMARC module conga-SMX8-X with lidded NXP i.MX 8X ARM processor. All standoffs are with 2.7mm bore hole.

      Carrierboards

      conga-SEVAL (P/N 007010)

      Evaluation Carrier Board for SMARC 2.0 modules.

      conga-SMC1/SMARC-ARM (P/N 020750)

      Compact sized SMARC 2.0 Carrier Board for ARM based SMARC Modules
