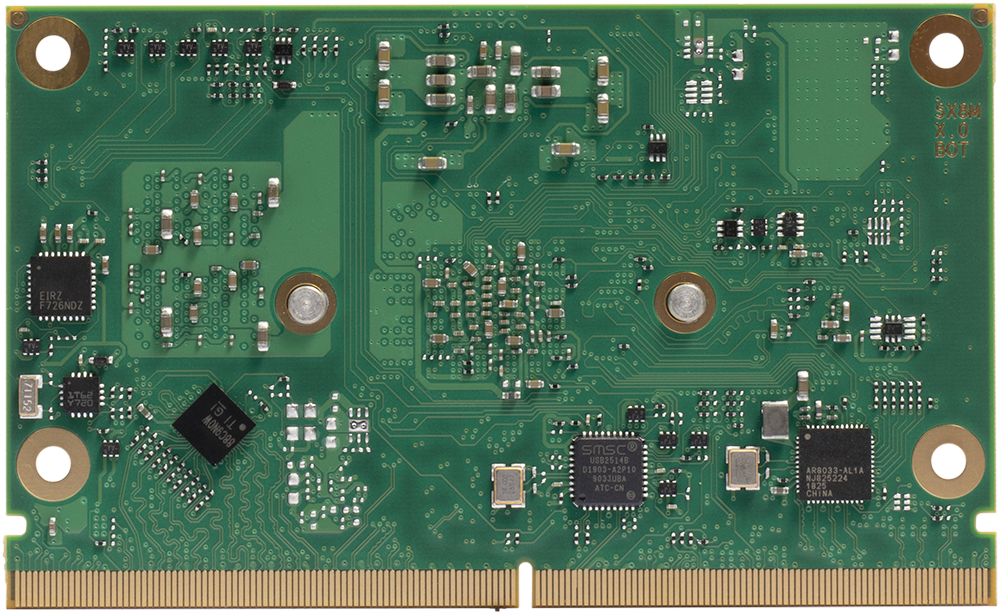

  • conga-SMX8-Mini Image 2

Your item has been added to the inquiry

conga-SMX8-Mini Image

conga-SMX8-Mini

SMARC 2.1 module based on NXP i.MX8M Mini processor series

Selected module variant

    Selected ecosystem parts

    Cooling Solutions

      Carrierboards

        Module services

          Value adding ecosystem offerings


          Cooling Solutions

          Carrierboards

          Module services

          Request quote + Add more articles

          conga-SMX8-Mini

          SMARC 2.1 module based on NXP i.MX8M Mini processor series

          • SMARC 2.1 Module based on NXP i.MX 8M Mini
          • Scalable ARM Performance with up to 4x 1.8GHz Cortex-A53 and 1x Cortex-M4F
          • Highly improved power efficiency and performance by 14LPC FinFET process technology
          • 3D Graphics with full-HD resolution
          • MIPI CSI-2 camera interface
          • Extended longevity up to 15 years
          Congatec Logo
          Do you want to add further ecosystem parts (carrier boards, memory,...) to your request?

          Value adding ecosystem offerings

          Cooling Solutions

          Carrierboards

          Module services

          Specification

          Formfactor
          SMARC
          CPU
          NXP i.MX 8M Mini Quad (4x 1.8GHz ARM Cortex-A53, 1x 400MHz ARM Cortex-M4)
          NXP i.MX 8M Mini Dual (2x 1.8GHz ARM Cortex-A53, 1x 400MHz ARM Cortex-M4)
          NXP i.MX 8M Mini Solo (1x 1.8GHz ARM Cortex-A53, 1x 400MHz ARM Cortex-M4)
          NXP i.MX 8M Mini Quad industrial (4x 1.6GHz ARM Cortex-A53, 1x 400MHz ARM Cortex-M4)
          NXP i.MX 8M Mini Dual industrial (2x 1.6GHz ARM Cortex-A53, 1x 400MHz ARM Cortex-M4)
          NXP i.MX 8M Mini Solo industrial (1x 1.6GHz ARM Cortex-A53, 1x 400MHz ARM Cortex-M4)
          DRAM
          Up to 4 GByte onboard LPDDR4 memory | 3000 MT/s
          Ethernet
          1 x Gigabit Ethernet
          I/O Interfaces
          5 x USB 2.0 (shared with 1x USB OTG client)
          1 x PCIe 2.0
          1 x SDIO 3.0
          I²C bus
          1 x SPI
          USB 2.0 (shared with 1x USB OTG client)
          up to 3x UART (1x with handshake)
          GPIOs
          optional M.2 1216 WiFi/BT module
          Graphics
          Integrated in NXP i.MX 8M Mini Series GC NanoUltra 3D GPU
          one display VPU with up to 1080p video decoding (H.265, H.264, VP8/9) | up to 1080p video encoding (H.264, VP8) 3D Graphics GPU with 1 shader core | up to 6.4GFlops | GC328 2D Graphics GPU OpenGL ES 2.0 | OpenVG 1.1
          Security
          High Assurance Boot support | SRTC | SJTAG | TrustZone | AES-256, RSA-4096, SHA-256, 3DES, DES, ARC4, MD-5 Secure Real Time Clock (RTC) | eFuse Key Storage | True Random Number Generator (RNG) | 32 KB Secure RAM
          Operating Systems
          Linux
          Yocto
          Android
          Temperature
          Commercial : Operating: 0 to +60°C | Operating industrial: -40 .. +85°C | Storage: -20 to +80°C
          Humidity
          Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond.
          Video Interfaces
          1x dual channel 24bit LVDS through bridge (default) | opt. eDP 1.4 or MIPI-DSI 4-lanes (shared with LVDS)
          Size
          82 x 50 mm (3,23” x 1,97”)

          Documents

          All documents found on this page are updated without notification. Always check this page for the latest version.

          Data Sheet

          Data Sheet for conga-SMX8-Mini
          07.12.2020

          Manual

          User's Guide for conga-SMX8-Mini
          19.02.2025
          conga-SMX8-Mini Software Documentation

          Software

          [ Android ]      [ yocto ]

          Android

          Link
          In order to fetch and build the Android-BSP for conga-SMX8-Mini, please follow:
          https://congatec.atlassian.net/wiki/spaces/I8D/pages/2818106/i.MX+8M+Mini+Android+8M+Mini+Android

          yocto

          Link
          For more information regarding GNU/Linux and Yocto for conga-SMX8-Mini, please follow:
          https://congatec.atlassian.net/wiki/spaces/I8D/pages/2588707/i.MX+8M+Mini+GNU+Linux

          Product Variants

          Product Filter:

            Add Filter:

             -
             -
             -
             -
             -
             -
              There are 1,000's of possible configurations of our products, and therefore every possible configuration may not be shown with this tool.
              If you don't find the configuration you require contact your congatec Sales representative for further assistance.
              conga-SMX8-Mini/QC-4G eMMC16 (P/N 051200)

              SMARC 2.1 module with NXP i.MX 8M Mini Quad 14LPC FinFET processor with 4x 1.8GHz ARM Cortex-A53 and 1x 400MHz ARM Cortex-M4F, 4GB onboard LPDDR4 memory and 16GB onboard eMMC. Commercial temperature range.

              conga-SMX8-Mini/DC-2G eMMC16 (P/N 051201)

              SMARC 2.1 module with NXP i.MX 8M Mini Dual 14LPC FinFET processor with 2x 1.8GHz ARM Cortex-A53 and 1x 400MHz ARM Cortex-M4F, 2GB onboard LPDDR4 memory and 16GB onboard eMMC. Commercial temperature range.

              conga-SMX8-Mini/SC-1G eMMC16 (P/N 051202)

              SMARC 2.1 module with NXP i.MX 8M Mini Single 14LPC FinFET processor with 1x 1.8GHz ARM Cortex-A53 and 1x 400MHz ARM Cortex-M4F, 1GB onboard LPDDR4 memory and 16GB onboard eMMC. Commercial temperature range.

              conga-SMX8-Mini/QC-2G eMMC16 (P/N 051203)

              SMARC 2.1 module with NXP i.MX 8M Mini Quad 14LPC FinFET processor with 4x 1.8GHz ARM Cortex-A53 and 1x 400MHz ARM Cortex-M4F, 2GB onboard LPDDR4 memory and 16GB onboard eMMC. Commercial temperature range.

              conga-SMX8-Mini/QC-4G eMMC16 DP (P/N 051204)

              SMARC 2.1 module with NXP i.MX 8M Mini Quad 14LPC FinFET processor with 4x 1.8GHz ARM Cortex-A53 and 1x 400MHz ARM Cortex-M4F, 4GB onboard LPDDR4 memory and 16GB onboard eMMC. Features DisplayPort interface. Commercial temperature range.

              conga-SMX8-Mini/i-QC-4G eMMC16 (P/N 051220)

              SMARC 2.1 module with NXP i.MX 8M Mini Quad 14LPC FinFET processor with 4x 1.6GHz ARM Cortex-A53 and 1x 400MHz ARM Cortex-M4F, 4GB onboard LPDDR4 memory and 16GB onboard eMMC. Industrial temperature range.

              conga-SMX8-Mini/i-DC-2G eMMC16 (P/N 051221)

              SMARC 2.1 module with NXP i.MX 8M Mini Dual 14LPC FinFET processor with 2x 1.6GHz ARM Cortex-A53 and 1x 400MHz ARM Cortex-M4F, 2GB onboard LPDDR4 memory and 16GB onboard eMMC. Industrial temperature range.

              conga-SMX8-Mini/i-SC-1G eMMC16 (P/N 051222)

              SMARC 2.1 module with NXP i.MX 8M Mini Single 14LPC FinFET processor with 1x 1.6GHz ARM Cortex-A53 and 1x 400MHz ARM Cortex-M4F, 1GB onboard LPDDR4 memory and 16GB onboard eMMC. Industrial temperature range.

              conga-SMX8-Mini/i-QC-2G eMMC16 (P/N 051223)

              SMARC 2.1 module with NXP i.MX 8M Mini Quad 14LPC FinFET processor with 4x 1.6GHz ARM Cortex-A53 and 1x 400MHz ARM Cortex-M4F, 2GB onboard LPDDR4 memory and 16GB onboard eMMC. Industrial temperature range.

              Ecosystem Details

              Cooling Solutions

              SMX8-Mini/HSP-B (P/N 051251)

              Heat spreader solution for SMARC 2.0 conga-SMX8-Mini with NXP i.MX 8M Mini ARM processor. All standoffs are with 2.7mm bore hole

              SMX8-Mini/CSP-B (P/N 051250)

              Passive cooling solution for SMARC 2.0 module conga-SMX8-Mini with NXP i.MX 8M Mini ARM processor. All standoffs are with 2.7mm bore hole

              Carrierboards

              conga-SEVAL (P/N 007010)

              Evaluation Carrier Board for SMARC 2.0 modules.

              conga-SMC1/SMARC-ARM (P/N 020750)

              Compact sized SMARC 2.0 Carrier Board for ARM based SMARC Modules

              Module services

              Design-In Training (P/N 27000001)

              Design-Training to develop carrier boards for Computer on Modules

              Conformal Coating Qseven, SMARC, Type 10 (P/N )

              HumiSeal® 1A33 coating for Qseven, SMARC and Type 10 modules; MIL-I-46058C qualified, IPC-CC-830 and RoHS
              Directive 2002/95/EC compliant and recognized under UL File Number E105698.

              Ext. temperature screening (-40°C to +85°C) (P/N )

              congatec Wide Temperature Range Screening
              Standard screening profile with 12h temperature screening and cold soak test
              Including functional test and several boot-ups (before & after screening)

              Ext. temperature screening (-25°C to +80°C) (P/N )

              congatec Wide Temperature Range Screening
              Standard screening profile with 12h temperature screening and cold soak test
              Including functional test and several boot-ups (before & after screening)
