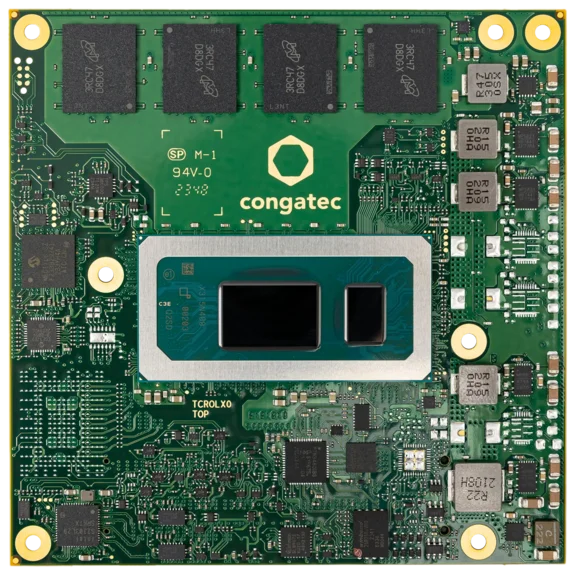

conga-TC675r

COM Express Type 6 Compact module based on 13th Gen Intel® Core™ embedded mobile processors (code name "Raptor Lake") and soldered down memory

Virtualization Ready
  • Intel® hybrid design combines Performance-cores with Efficient–cores
  • Onsoldered LPDDR5x with up to 6000 MT/s
  • PCI Express Gen 4 | up to USB 4
  • Options for Industrial Temperature Range -40°C to +85°C
Congatec Logo
Do you want to add further ecosystem parts (carrier boards, memory,...) to your request?

Value adding ecosystem offerings

Cooling Solutions

Carrierboards

Module services

Operating Systems

Virtualization

Specification

Formfactor
COM Express Compact
CPU
Intel® Core™ i7-13800HRE (6 P-cores 2.5GHz up to 5.0GHz, 8 E-cores 1.8GHz up to 4.0GHz, 24MB cache, 45W)
Intel® Core™ i7-1370PRE (6 P-cores 1.9GHz up to 4.8GHz, 8 E-cores 1.2GHz up to 3.7GHz, 24MB cache, 28W)
Intel® Core™ i7-1365URE (2 P-cores 1.7GHz up to 4.9GHz, 8 E-cores 1.2GHz up to 3.7GHz, 12MB cache, 15W)
Intel® Core™ i5-13600HRE (4 P-cores 2.7GHz up to 4.8GHz, 8 E-cores 1.9GHz up to 3.6GHz, 18MB cache, 45W)
Intel® Core™ i5-1350PRE (4 P-cores 1.8GHz up to 4.6GHz, 8 E-cores 1.3GHz up to 3.4GHz, 12MB cache, 28W)
Intel® Core™ i3-1320PRE (4 P-cores 1.7GHz up to 4.5GHz, 4 E-cores 1.2GHz up to 3.3GHz, 12MB cache, 28W)
DRAM
Up to 32 GB (optional 64GB) LPDDR5x with up to 6000 MT/s SDRAM | memory down | dual channel | IBECC
Ethernet
2.5 GbE with TSN support via Intel® i226 Ethernet controller series
I/O Interfaces
Up to 8 PCIe Gen4 PEG (H-Series) or up to 4 PCIe Gen4 PEG (P-and U-Series)
up to 8 PCIe Gen3
up to 2x USB4
4x USB 3.2 Gen2 (incl. USB 2.0) + 4x USB 2.0
up to 2x SATA
up to 2x UART
CAN (opt.)
8 x GPIOs
SPI
LPC bus
SM-Bus
I²C bus
Mass storage
NVMe x4 SSD (optional)
Graphics
Intel® UHD Graphics or Intel® Iris® Xe Graphics architecture | up to 96 EUs
congatec Board Controller
Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control | Hardware Health Monitoring | POST Code redirection
embedded BIOS Features
AMI Aptio UEFI
32 Mbyte serial SPI with congatec Embedded BIOS feature
OEM Logo
OEM CMOS Defaults
LCD Control
Display Auto Detection
Backlight Control
Flash Update
Security
Trusted Platform Module (TPM 2.0)
Power Management
ACPI 5.0a with battery support
Operating Systems
Microsoft® Windows 11
Microsoft® Windows 11 IoT Enterprise
Microsoft® Windows® 10
Microsoft® Windows 10 IoT Enterprise
Linux
Yocto
Hypervisor
RTS Real-Time Hypervisor
Temperature
Operation: -40°C to 85°C | Storage: -40°C to 85°C
Humidity
Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond.
Video Interfaces
Up to 3x DDI (2x shared with USB4) | LVDS or eDP| VGA (optional)
Size
95 x 95 mm (3,74" x 3,74")

Documents

All documents found on this page are updated without notification. Always check this page for the latest version.

Manual

User's Guide for conga-TC675r
19.11.2024

Data Sheet

Data Sheet for conga-TC675r
30.10.2024

Software

[ EFI ]      [ Linux ]      [ Windows 10 ]      [ Windows 10 IoT ]      [ Windows 11 ]

EFI

cgutlcmd_efi_1.7.0.1.zip
01.08.2024 / 2.12 MB
congatec System Utility Rev. 1.7.0.1. for EFI shell. Use for BIOS update or customization and panel configuration.

Linux

CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
cgoslx-x64-1.03.032.tar.xz
09.05.2022 / 52.03 KB
CGOS legacy driver 1.03.032 for 64bit Linux (Kernel version 3.x, 4.x, 5.x and 6.x). For kernel versions >= 5.8 please refer to readme.txt and/or consider using the cgoslx-x64-1.03.032_vmalloc.tar.xz package.
cgoslx-x64-1.03.032_vmalloc.tar.xz
09.05.2022 / 52.74 KB
CGOS legacy driver 1.03.032 for 64bit Linux (Kernel versions 5.8 or higher). Modified driver package with Kernel patch as a workaround for memory allocation issues with Kernels >= 5.8
CgosPy_1_3.zip
23.07.2024 / 655.40 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
CGOS_DIRECT_Lx_R3.0.1.zip
06.09.2024 / 184.47 KB
CGOS direct driver for Linux.
cgutillx.tar
04.07.2023 / 3.93 MB
congatec System Utility Rev. 1.6.2
Use for BIOS update or customization and panel configuration. Linux source version.
Important note: Only compatible with cgos 1.03.032 and older!
cgutlcmd_linux_1.7.0.1.zip
01.08.2024 / 2.32 MB
congatec System Utility Rev. 1.7.0.1. for Linux. Use for BIOS update or customization and panel configuration.
CGUTLGUI_Qt_v100.zip
25.03.2019 / 30.28 MB
Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.0.0. Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
Important note: Only compatible with cgos 1.03.032 and older!

Windows 10

CgMlfTools_2019_10_24.zip
25.03.2024 / 16.68 MB
The congatec Menu Layout File Viewer (CgMlfViewer) and the congatec Menu Layout File Editor (CgMlfEditor) are Qt based applications meant to read Menu Layout Files (*.mlf) created by a congatec BIOS, to display all setup nodes and options and for the CgMlfEditor also to edit them.
CgMlfViewer_v100_bin.zip
25.10.2019 / 7.99 MB
The congatec Menu Layout File Viewer (CgMlfViewer) is a Qt based application meant to read Menu Layout Files (*.mlf) created by a congatec BIOS and to display all setup nodes and options.
Cgos-x64-Windows10.zip
05.09.2021 / 225.62 KB
CGOS legacy driver 1.03.021 for 64bit Windows 10/11 only.
CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
CgosClr.zip
22.02.2016 / 40.98 KB
CGOS API Library for the .NET Framework The CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.
CgosPy_1_3.zip
23.07.2024 / 655.40 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
Cgos_direct_Win10_Win11_3.0.0.zip
05.08.2024 / 49.24 MB
CGOS direct driver for Windows 10 and Windows 11. Please refer to readme.txt for supported functions and boards.
cgutlcmd_win_1.7.0.1.zip
01.08.2024 / 18.41 MB
congatec System Utility Rev. 1.7.0.1. for Windows. Use for BIOS update or customization and panel configuration.
CGUTLGUI_Qt_v100.zip
25.03.2019 / 30.28 MB
Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.0.0. Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
Important note: Only compatible with cgos 1.03.032 and older!
Chipset-10.1.19198.8339-Public-MUP.zip
24.03.2023 / 4.45 MB
Intel Chipset Software Installation Utility for installing the Windows* INF files. Rev. 10.1.19198.8339
gna-03.00.00.1457-Win11-rpl-20h2-21h1-22h2-resign2-20221031.zip
29.02.2024 / 56.02 KB
Intel GNA Scoring Accelerator 03.00.00.1457
HIDEventFilterDriver-2.2.1.386_v4_RS5_19H1_20H1_21H2_22H2_Certified.zip
19.11.2024 / 1.68 MB
Intel(R) HID Event Filter Driver Version 2.2.1.386_v4
Intel_CSME_SW_2321.4.31.0_Consumer.zip
29.02.2024 / 1.08 GB
Intel Management Engine Consumer driver 2321.4.31.0
Intel_CSME_SW_2321.4.31.0_Corporate.zip
29.02.2024 / 979.24 MB
Intel Management Engine driver Corporate 2321.4.31.0
Intel_DTT_9.0.11000.27915.zip
24.03.2023 / 78.44 MB
Intel(R) Dynamic Tuning Technology Driver Version 9.0.11000.27915
Intel_SST_ADL_v10.29.00.7919.zip
24.03.2023 / 292.05 MB
Intel smart sound driver version 10.29.00.7919
ISH_Kit_5.4.2.4582v3.zip
24.03.2023 / 92.24 MB
Intel Sensor HUB for Windows 10 - 5.4.2.4582v3
Release_28.2.zip
29.02.2024 / 776.58 MB
Intel Ethernet Driver Version 28.2
RST_PV_19.5.0.1037.2_Win11SV2_Win1020H2.zip
24.03.2023 / 109.22 MB
Rapid Storage Technology Driver: Version 19.5.0.1037.2
SerialIO_30.100.2221.20v2_RPL_ADL-PCH_22H2.zip
24.03.2023 / 2.65 MB
Intel Serial IO Drivers 30.100.2221.20v2
TBT_DCH_SW_Rev87_2.zip
24.03.2023 / 242.26 MB
Thunderbolt Driver Rev87.2

Windows 10 IoT

CgosPy_1_3.zip
23.07.2024 / 655.40 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
cgutlcmd_win_1.7.0.1.zip
01.08.2024 / 18.41 MB
congatec System Utility Rev. 1.7.0.1. for Windows. Use for BIOS update or customization and panel configuration.

Windows 11

CgMlfTools_2019_10_24.zip
25.03.2024 / 16.68 MB
The congatec Menu Layout File Viewer (CgMlfViewer) and the congatec Menu Layout File Editor (CgMlfEditor) are Qt based applications meant to read Menu Layout Files (*.mlf) created by a congatec BIOS, to display all setup nodes and options and for the CgMlfEditor also to edit them.
CgMlfViewer_v100_bin.zip
25.10.2019 / 7.99 MB
The congatec Menu Layout File Viewer (CgMlfViewer) is a Qt based application meant to read Menu Layout Files (*.mlf) created by a congatec BIOS and to display all setup nodes and options.
CgosClr.zip
22.02.2016 / 40.98 KB
CGOS API Library for the .NET Framework The CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.
CgosPy_1_3.zip
23.07.2024 / 655.40 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
Cgos_direct_Win10_Win11_3.0.0.zip
05.08.2024 / 49.24 MB
CGOS direct driver for Windows 10 and Windows 11. Please refer to readme.txt for supported functions and boards.
CGUTLGUI_Qt_v100.zip
25.03.2019 / 30.28 MB
Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.0.0. Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
Important note: Only compatible with cgos 1.03.032 and older!
gna-03.00.00.1457-Win11-rpl-20h2-21h1-22h2-resign2-20221031.zip
29.02.2024 / 56.02 KB
Intel GNA Scoring Accelerator 03.00.00.1457
HIDEventFilterDriver-2.2.1.386_v4_RS5_19H1_20H1_21H2_22H2_Certified.zip
19.11.2024 / 1.68 MB
Intel(R) HID Event Filter Driver Version 2.2.1.386_v4
Intel_CSME_SW_2321.4.31.0_Consumer.zip
29.02.2024 / 1.08 GB
Intel Management Engine Consumer driver 2321.4.31.0
Intel_CSME_SW_2321.4.31.0_Corporate.zip
29.02.2024 / 979.24 MB
Intel Management Engine driver Corporate 2321.4.31.0
Release_28.2.zip
29.02.2024 / 776.58 MB
Intel Ethernet Driver Version 28.2
RST_PV_19.5.0.1037.2_Win11SV2_Win1020H2.zip
24.03.2023 / 109.22 MB
Rapid Storage Technology Driver: Version 19.5.0.1037.2
TBT_DCH_SW_Rev87_2.zip
24.03.2023 / 242.26 MB
Thunderbolt Driver Rev87.2

Product Variants

Product Filter:

    Add Filter:

     -
     -
     -
     -
     -
     -
    There are 1,000's of possible configurations of our products, and therefore every possible configuration may not be shown with this tool.
    If you don't find the configuration you require contact your congatec Sales representative for further assistance.
