conga-aCOM/mRLP

Application-Ready COM-HPC Mini Size module based on 13th Gen Intel® Core™ processor

Selected module variant

    Selected ecosystem parts

    Request quote + Add more articles

    conga-aCOM/mRLP

    Application-Ready COM-HPC Mini Size module based on 13th Gen Intel® Core™ processor

    aReady
    • Based on conga-HPC/mRLP-i5-1345URE

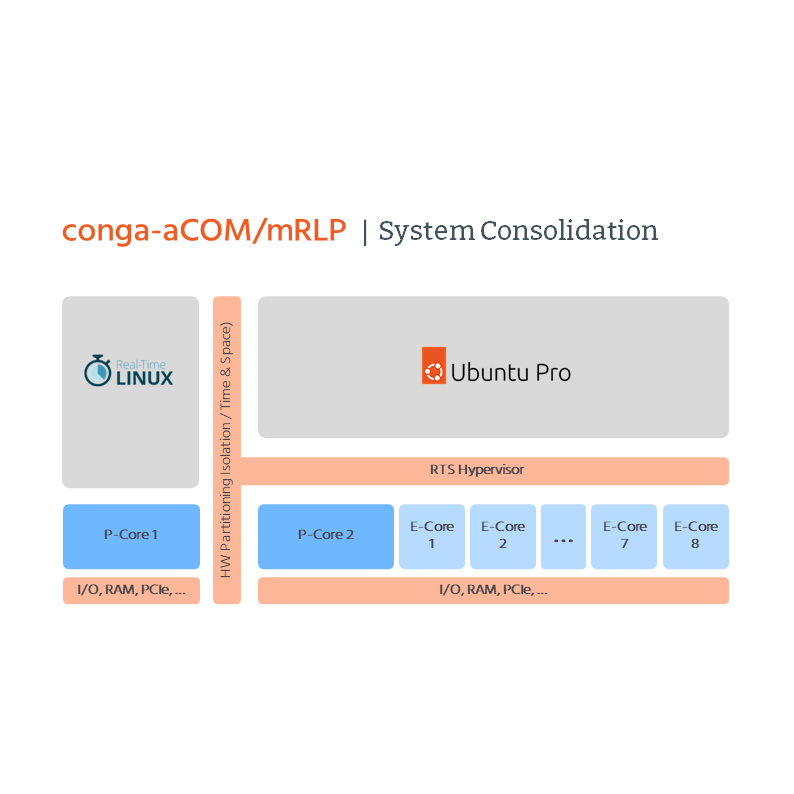

    • High-Performance configuration with 2 pre-configured virtual machines
    • Real-Time Linux OS on 1 P-Core
    • Ubuntu Pro running on 1 P-Core and 8 E-Cores
    • Incl. active cooling solution with heatpipes
    • Datasheet
    Congatec Logo
    Do you want to add further ecosystem parts (carrier boards, memory,...) to your request?

    Specification

    Formfactor
    COM-HPC
    CPU
    Intel® Core™ i5-1345URE (2 P-cores 1.4GHz up to 4.6GHz, 8 E-cores 1.1GHz up to 3.4GHz, 12MB cache, 15W)
    DRAM
    16GB onboard LPDDR5x memory
    Ethernet
    2 x 2.5 GbE with TSN support via Intel® i226 Ethernet controller series
    I/O Interfaces
    2x 4 PCIe Gen4
    Up to 8x PCIe Gen3
    Up to 1x USB 4.0
    Up to 4x USB 3.2 Gen2x1
    Up to 8x USB 2.0
    Up to 2x SATA III
    SPI
    2 x UART
    12 x GPIOs
    2 x MIPI-CSI (SMT connectors on module)
    Mass storage
    128 GB NVMe SSD connected via PCIe (soldered)
    Graphics
    Intel® Iris® Xe Graphics architecture | Supports up to 4 independent displays
    congatec Board Controller
    Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control | Hardware Health Monitoring | POST Code redirection
    embedded BIOS Features
    AMI Aptio® 2.X (UEFI) firmware
    32 Mbyte serial SPI with congatec Embedded BIOS feature
    OEM Logo
    OEM CMOS Defaults
    LCD Control
    Display Auto Detection
    Backlight Control
    Flash Update
    Security
    TPM 2.0 with AES bulk encryption
    Power Management
    Modern standby
    Preinstalled OS
    Real-Time Linux
    RTS Real-Time Linux reference installation with Kernel 6.1 (Realtime-Preempt, longterm)
    Ubuntu Pro
    Ubuntu 22.04 LTS, Canonical "Ubuntu Pro" subscription including 10 years security coverage
    Hypervisor
    RTS Real-Time Hypervisor, pre-configured
    Temperature
    -40°C to 85°C
    Humidity
    10% to 90% r. H. non cond.
    Video Interfaces
    Up to 2x DP/DP++ | 1x eDP
    Size
    95 x 70 mm²

    Documents

    All documents found on this page are updated without notification. Always check this page for the latest version.

    Data Sheet

    Data Sheet for conga-aCOM/mRLP
    30.10.2024

    Software

    [ EFI ]      [ Linux ]      [ Windows 10 ]      [ Windows 10 IoT ]      [ Windows 11 ]

    EFI

    cgutlcmd_efi_1.7.0.1.zip
    01.08.2024 / 2.12 MB
    congatec System Utility Rev. 1.7.0.1. for EFI shell. Use for BIOS update or customization and panel configuration.

    Linux

    CGOSAPIm14.pdf
    04.04.2017 / 1.07 MB
    CGOS API programmers manual
    cgoslx-x64-1.03.032.tar.xz
    09.05.2022 / 52.03 KB
    CGOS legacy driver 1.03.032 for 64bit Linux (Kernel version 3.x, 4.x, 5.x and 6.x). For kernel versions >= 5.8 please refer to readme.txt and/or consider using the cgoslx-x64-1.03.032_vmalloc.tar.xz package.
    cgoslx-x64-1.03.032_vmalloc.tar.xz
    09.05.2022 / 52.74 KB
    CGOS legacy driver 1.03.032 for 64bit Linux (Kernel versions 5.8 or higher). Modified driver package with Kernel patch as a workaround for memory allocation issues with Kernels >= 5.8
    CgosPy_1_3.zip
    23.07.2024 / 655.40 KB
    CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
    CGOS_DIRECT_Lx_R3.0.3.zip
    12.02.2025 / 186.42 KB
    CGOS direct driver for Linux.
    cgutillx.tar
    04.07.2023 / 3.93 MB
    congatec System Utility Rev. 1.6.2
    Use for BIOS update or customization and panel configuration. Linux source version.
    Important note: Only compatible with cgos 1.03.032 and older!
    cgutlcmd_linux_1.7.0.1.zip
    01.08.2024 / 2.32 MB
    congatec System Utility Rev. 1.7.0.1. for Linux. Use for BIOS update or customization and panel configuration. Only compatible with cgos direct 3.0.0 and newer!
    CGUTLGUI_Qt_v100.zip
    25.03.2019 / 30.28 MB
    Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.0.0. Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
    Important note: Only compatible with cgos 1.03.032 and older!

    Windows 10

    CgMlfTools_2019_10_24.zip
    25.03.2024 / 16.68 MB
    The congatec Menu Layout File Viewer (CgMlfViewer) and the congatec Menu Layout File Editor (CgMlfEditor) are Qt based applications meant to read Menu Layout Files (*.mlf) created by a congatec BIOS, to display all setup nodes and options and for the CgMlfEditor also to edit them.
    CgMlfViewer_v100_bin.zip
    25.10.2019 / 7.99 MB
    The congatec Menu Layout File Viewer (CgMlfViewer) is a Qt based application meant to read Menu Layout Files (*.mlf) created by a congatec BIOS and to display all setup nodes and options.
    Cgos-x64-Windows10.zip
    05.09.2021 / 225.62 KB
    CGOS legacy driver 1.03.021 for 64bit Windows 10/11 only.
    CGOSAPIm14.pdf
    04.04.2017 / 1.07 MB
    CGOS API programmers manual
    CgosClr.zip
    22.02.2016 / 40.98 KB
    CGOS API Library for the .NET Framework The CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.
    CgosPy_1_3.zip
    23.07.2024 / 655.40 KB
    CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
    Cgos_direct_Win10_Win11_3.0.3.zip
    12.02.2025 / 49.25 MB
    CGOS direct driver for Windows 10 and Windows 11. Please refer to readme.txt for supported functions and boards.
    cgutlcmd_win_1.7.0.1.zip
    01.08.2024 / 18.41 MB
    congatec System Utility Rev. 1.7.0.1. for Windows. Use for BIOS update or customization and panel configuration. Important note: Only compatible with cgos direct 3.0.0 and newer!
    CGUTLGUI_Qt_v100.zip
    25.03.2019 / 30.28 MB
    Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.0.0. Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
    Important note: Only compatible with cgos 1.03.032 and older!
    Chipset-10.1.19198.8339-Public-MUP.zip
    24.03.2023 / 4.45 MB
    Intel Chipset Software Installation Utility for installing the Windows* INF files. Rev. 10.1.19198.8339
    gna-03.00.00.1457-Win11-rpl-20h2-21h1-22h2-resign2-20221031.zip
    29.02.2024 / 56.02 KB
    Intel GNA Scoring Accelerator 03.00.00.1457
    HIDEventFilterDriver-2.2.1.386_v4_RS5_19H1_20H1_21H2_22H2_Certified.zip
    19.11.2024 / 1.68 MB
    Intel(R) HID Event Filter Driver Version 2.2.1.386_v4
    Intel_CSME_SW_2321.4.31.0_Consumer.zip
    29.02.2024 / 1.08 GB
    Intel Management Engine Consumer driver 2321.4.31.0
    Intel_CSME_SW_2321.4.31.0_Corporate.zip
    29.02.2024 / 979.24 MB
    Intel Management Engine driver Corporate 2321.4.31.0
    Intel_DTT_9.0.11000.27915.zip
    24.03.2023 / 78.44 MB
    Intel(R) Dynamic Tuning Technology Driver Version 9.0.11000.27915
    Intel_SST_ADL_v10.29.00.7919.zip
    24.03.2023 / 292.05 MB
    Intel smart sound driver version 10.29.00.7919
    ISH_Kit_5.4.2.4582v3.zip
    24.03.2023 / 92.24 MB
    Intel Sensor HUB for Windows 10 - 5.4.2.4582v3
    Release_28.2.zip
    29.02.2024 / 776.58 MB
    Intel Ethernet Driver Version 28.2
    RST_PV_19.5.0.1037.2_Win11SV2_Win1020H2.zip
    24.03.2023 / 109.22 MB
    Rapid Storage Technology Driver: Version 19.5.0.1037.2
    SerialIO_30.100.2221.20v2_RPL_ADL-PCH_22H2.zip
    24.03.2023 / 2.65 MB
    Intel Serial IO Drivers 30.100.2221.20v2
    TBT_DCH_SW_Rev87_2.zip
    24.03.2023 / 242.26 MB
    Thunderbolt Driver Rev87.2

    Windows 10 IoT

    CgosPy_1_3.zip
    23.07.2024 / 655.40 KB
    CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
    cgutlcmd_win_1.7.0.1.zip
    01.08.2024 / 18.41 MB
    congatec System Utility Rev. 1.7.0.1. for Windows. Use for BIOS update or customization and panel configuration. Important note: Only compatible with cgos direct 3.0.0 and newer!

    Windows 11

    CgMlfTools_2019_10_24.zip
    25.03.2024 / 16.68 MB
    The congatec Menu Layout File Viewer (CgMlfViewer) and the congatec Menu Layout File Editor (CgMlfEditor) are Qt based applications meant to read Menu Layout Files (*.mlf) created by a congatec BIOS, to display all setup nodes and options and for the CgMlfEditor also to edit them.
    CgMlfViewer_v100_bin.zip
    25.10.2019 / 7.99 MB
    The congatec Menu Layout File Viewer (CgMlfViewer) is a Qt based application meant to read Menu Layout Files (*.mlf) created by a congatec BIOS and to display all setup nodes and options.
    CgosClr.zip
    22.02.2016 / 40.98 KB
    CGOS API Library for the .NET Framework The CgosClr.dll is an assembly that allows easy access to the CGOS API from CLR (Common Language Runtime) .NET Framework languages like C#, Visual Basic, J#, and managed C++.
    CgosPy_1_3.zip
    23.07.2024 / 655.40 KB
    CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
    Cgos_direct_Win10_Win11_3.0.3.zip
    12.02.2025 / 49.25 MB
    CGOS direct driver for Windows 10 and Windows 11. Please refer to readme.txt for supported functions and boards.
    CGUTLGUI_Qt_v100.zip
    25.03.2019 / 30.28 MB
    Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.0.0. Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
    Important note: Only compatible with cgos 1.03.032 and older!
    gna-03.00.00.1457-Win11-rpl-20h2-21h1-22h2-resign2-20221031.zip
    29.02.2024 / 56.02 KB
    Intel GNA Scoring Accelerator 03.00.00.1457
    HIDEventFilterDriver-2.2.1.386_v4_RS5_19H1_20H1_21H2_22H2_Certified.zip
    19.11.2024 / 1.68 MB
    Intel(R) HID Event Filter Driver Version 2.2.1.386_v4
    Intel_CSME_SW_2321.4.31.0_Consumer.zip
    29.02.2024 / 1.08 GB
    Intel Management Engine Consumer driver 2321.4.31.0
    Intel_CSME_SW_2321.4.31.0_Corporate.zip
    29.02.2024 / 979.24 MB
    Intel Management Engine driver Corporate 2321.4.31.0
    Release_28.2.zip
    29.02.2024 / 776.58 MB
    Intel Ethernet Driver Version 28.2
    RST_PV_19.5.0.1037.2_Win11SV2_Win1020H2.zip
    24.03.2023 / 109.22 MB
    Rapid Storage Technology Driver: Version 19.5.0.1037.2
    TBT_DCH_SW_Rev87_2.zip
    24.03.2023 / 242.26 MB
    Thunderbolt Driver Rev87.2

    Product Variants

    Product Filter:

      Add Filter:

       -
       -
       -
       -
       -
       -
      There are 1,000's of possible configurations of our products, and therefore every possible configuration may not be shown with this tool.
      If you don't find the configuration you require contact your congatec Sales representative for further assistance.
      conga-aCOM/mRLP (P/N 320001)

      aReady.COM including COM-HPC Size Mini module based on Intel® Core™ i5- 1345URE processor with 2 P-cores 1.4GHz up to 4.6GHz Turbo and 8 E-cores 1.1GHz up to 3.4GHz Turbo | 16GB onboard LPDDR5x memory | 128 GB NVMe SSD | Active cooling solution (bore hole) Pre-installed Software: RTS Hypervisor (including evaluation license) | Real-Time Linux | Ubuntu Pro Desktop
