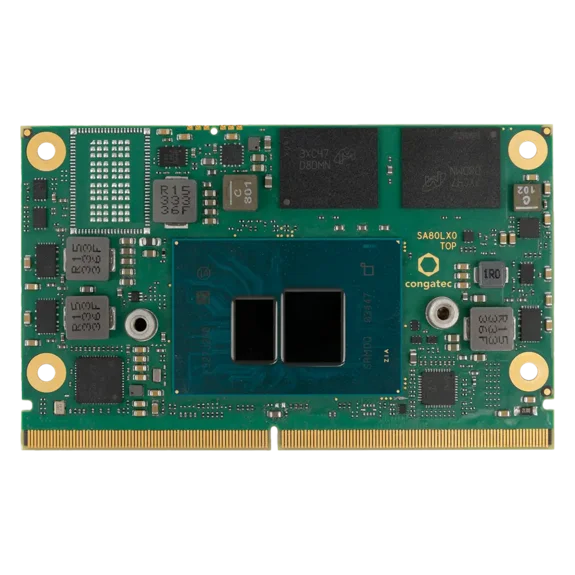

conga-SA8 Vorschaubild

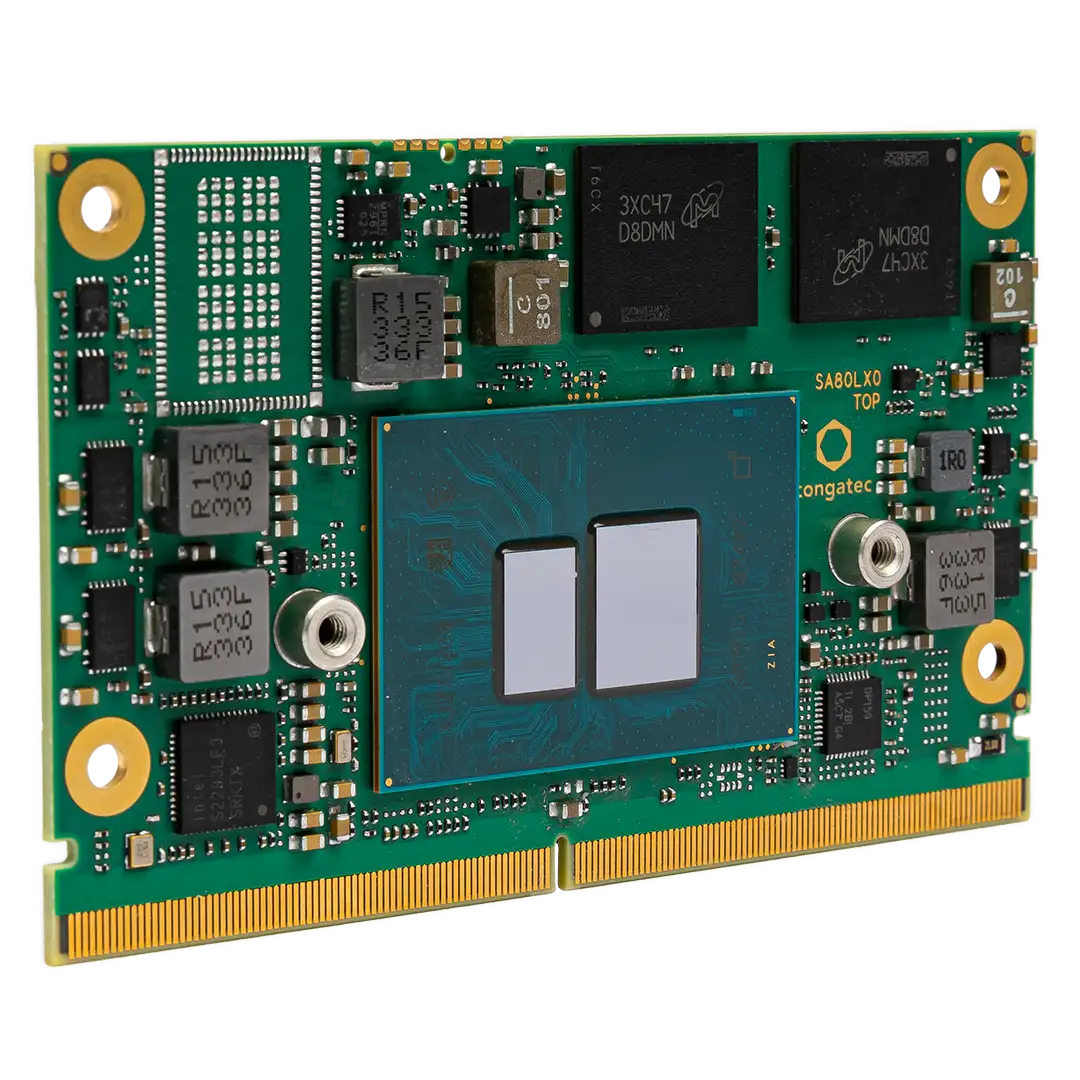

  • conga-SA8 Bild 1

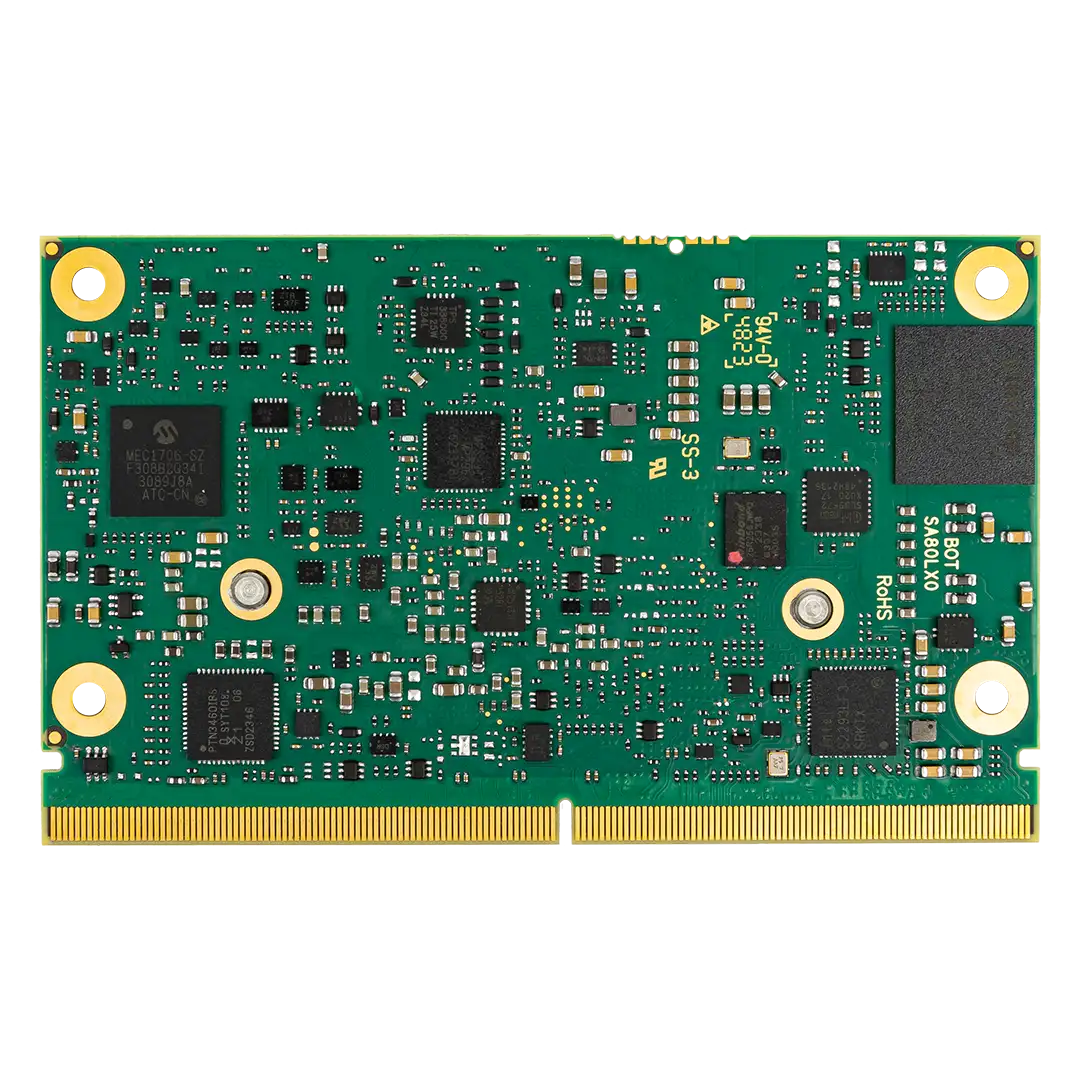

  • conga-SA8 Bild 2

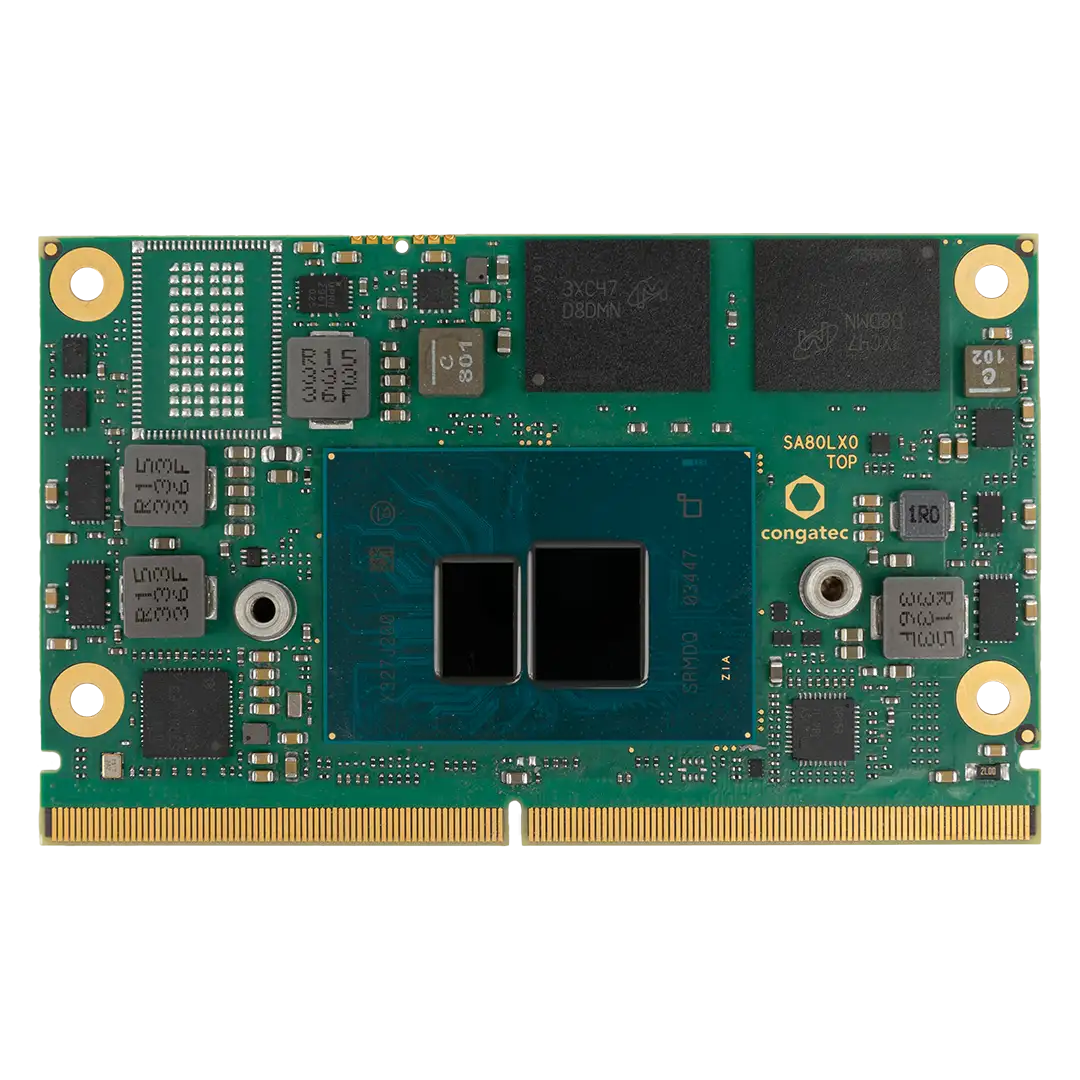

  • conga-SA8 Bild 3

Zur Anfrage hinzugefügt

conga-SA8 Bild

conga-SA8

Industrial grade SMARC module based on Intel Atom x7000RE Series with up to 8 cores, max. 16 GByte soldered LPDDR5 and Virtualization ready with RTS Hypervisor

Ausgewählte Modulvariante

Zusätzliche Ecosystem Parts


Virtualization

Operating Systems

Cooling Solutions

Carrierboards

Angebot anfordern + Weitere Artikel hinzufügen

conga-SA8

Industrial grade SMARC module based on Intel Atom x7000RE Series with up to 8 cores, max. 16 GByte soldered LPDDR5 and Virtualization ready with RTS Hypervisor

Virtualization Ready
  • Increase in parallelism and performance
  • AI Acceleration (VNNI)
  • Intel Gen 12 UHD Graphics with up to 32EU’s
  • LPDDR5 with up to 4.800 MT/s memory support
  • Extended temperature options available
Congatec Logo
Wollen Sie noch weitere Produkte aus unserem Ecosystem (zB. Carrierboards oder Arbeitsspeicher) zu Ihrer Anfrage hinzufügen?

Zusätzliche Ecosystem Parts

Virtualization

Operating Systems

Cooling Solutions

Carrierboards

Spezifikation

Formfactor
SMARC
CPU
Intel Core™ i3-N305 (8 x 1.8 GHz, 6MB, 9W)
Intel Atom® x7425E (4-core processor with 1.5GHz core frequency up to 3.4GHz (turbo))
Intel Atom® x7433RE (4 x 1.5 GHz, 9W)
Intel Atom® x7835RE (8 x 1.3 GHz, 12W)
DRAM
max. 16GB onboard LPDDR5 | up to 4.800 MT/s | In-Band ECC
Ethernet
2 x 2.5 GbE with TSN support via Intel® i226 Ethernet controller series
Supporting TSN - Time Sensitive Networking (selected PNs)
2 Software Definable Pins (SDPs) to be used for IEEE 1588
I/O Interfaces
2 x USB 3.2 Gen2
6 x USB 2.0
SATA Gen 3.2
up to 4x PCIe Gen3
3 x I²C bus
SPI
eSPI
4 x UART
12 x GPIOs
GP I²C
SM-Bus
2 x I²C CSI
Intel® Wi-Fi 6E AX210, BT 5.3 (optional)
Mass storage
eMMC 5.1 onboard flash up to 256 GB (optional configured as pSLCmode)
Graphics
Integrated Intel Gen 12 UHD Graphics with up to 32EU’s
congatec Board Controller
Multistage watchdog | non-volatile user data storage | manufacturing and board Information | board statistics | fast mode and multi-master I²C bus | power loss control
embedded BIOS Features
AMI Aptio® UEFI firmware
32 Mbyte serial SPI with congatec Embedded BIOS feature
OEM Logo
OEM CMOS Defaults
LCD Control
Display Auto Detection
Backlight Control
Flash Update
Security
TPM 2.0 | Intel®PlatformTrust Technology | Intel®BootGuard | Intel® OS Guard
Power Management
ACPI 5 .0 compliant, Smart Battery Management
Operating Systems
Microsoft® Windows 11
Microsoft® Windows 11 IoT Enterprise
Microsoft® Windows® 10
Microsoft® Windows 10 IoT Enterprise
Linux
Hypervisor
RTS Real-Time Hypervisor
Temperature
Embedded SKUs: Operating 0°C to 60°C | Storage -20°C to 80°C
Industrial SKUs: Operating -40°C to 85°C | Storage -40°C to 85°C
Humidity
Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond.
Video Interfaces
Dual channel LVDS transmitter (support for flat panels with 2x24 bit data mapping up to a resolution of 1920x1200 @60Hz) | shared with eDP (option)
HDMI 2.0b: 4Kx2K @ 60Hz
eDP 1.4b: 4096x2304 @ 60Hz HBR3
DP 1.4: 4096x2304 @ 60Hz
Up to 3 independent displays
Size
82 x 50 mm (3,23” x 1,97”)

Dokumente

Alle Dokumente auf dieser Seite werden ohne Benachrichtigung aktualisiert. Prüfen Sie diese Seite immer auf die neueste Version.

Data Sheet

Data Sheet for conga-SA8
19.09.2024

Manual

Users's Guide for conga-SA8
25.09.2024

Software

[ EFI ]      [ Linux ]      [ Windows 10 ]      [ Windows 10 IoT ]      [ Windows 11 ]

EFI

cgutlcmd_efi_1.7.0.1.zip
01.08.2024 / 2.12 MB
congatec System Utility Rev. 1.7.0.1. for EFI shell. Use for BIOS update or customization and panel configuration.

Linux

CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
cgoslx-x64-1.03.032.tar.xz
09.05.2022 / 52.03 KB
CGOS legacy driver 1.03.032 for 64bit Linux (Kernel version 3.x, 4.x, 5.x and 6.x). For kernel versions >= 5.8 please refer to readme.txt and/or consider using the cgoslx-x64-1.03.032_vmalloc.tar.xz package.
cgoslx-x64-1.03.032_vmalloc.tar.xz
09.05.2022 / 52.74 KB
CGOS legacy driver 1.03.032 for 64bit Linux (Kernel versions 5.8 or higher). Modified driver package with Kernel patch as a workaround for memory allocation issues with Kernels >= 5.8
CgosPy_1_3.zip
23.07.2024 / 655.40 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
CGOS_DIRECT_Lx_R3.0.1.zip
06.09.2024 / 184.47 KB
CGOS direct driver for Linux.
cgutillx.tar
04.07.2023 / 3.93 MB
congatec System Utility Rev. 1.6.2
Use for BIOS update or customization and panel configuration. Linux source version.
Important note: Only compatible with cgos 1.03.032 and older!
CGUTILm16.pdf
02.07.2020 / 2.67 MB
congatec System Utility Users Guide
cgutlcmd_linux_1.7.0.1.zip
01.08.2024 / 2.32 MB
congatec System Utility Rev. 1.7.0.1. for Linux. Use for BIOS update or customization and panel configuration. Only compatible with cgos direct 3.0.0 and newer!
CGUTLGUI_Qt_v100.zip
25.03.2019 / 30.28 MB
Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.0.0. Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
Important note: Only compatible with cgos 1.03.032 and older!

Windows 10

Camera-63.22000.3.14762-ADL-N-HDMI-Prod-Win10.zip
28.11.2024 / 97.06 MB
Intel® Image Processing. UnitCamera-63.22000.3.14762-ADL-N-HDMI-Prod-Win10
CGOSAPIm14.pdf
04.04.2017 / 1.07 MB
CGOS API programmers manual
CgosPy_1_3.zip
23.07.2024 / 655.40 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
Cgos_direct_Win10_Win11_3.0.0.zip
05.08.2024 / 49.24 MB
CGOS direct driver for Windows 10 and Windows 11. Please refer to readme.txt for supported functions and boards.
CGUTILm16.pdf
02.07.2020 / 2.67 MB
congatec System Utility Users Guide
cgutlcmd_win_1.7.0.1.zip
01.08.2024 / 18.41 MB
congatec System Utility Rev. 1.7.0.1. for Windows. Use for BIOS update or customization and panel configuration. Important note: Only compatible with cgos direct 3.0.0 and newer!
CGUTLGUI_Qt_v100.zip
25.03.2019 / 30.28 MB
Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.0.0. Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
Important note: Only compatible with cgos 1.03.032 and older!
GNSS.zip
28.11.2024 / 820.49 KB
GNSS_4.19042.7.2_4G_5G_20H2_21H2_22H2
HIDEventFilterDriver-2.2.2.6_RS5_19H1_20H1_21H2_22H2_Certified.zip
28.11.2024 / 949.85 KB
HIDEventFilterDriver-2.2.2.6_RS5_19H1_20H1_21H2_22H2_Certified
HID_WOV_LED.zip
28.11.2024 / 135.67 KB
HidWovLed-Driver-SV2-11.0.1.104
Intel (R) Ethernet Controller I225-I226 Windows NDIS LAN driver...
27.11.2024 / 588.96 KB
Intel (R) Ethernet Controller I225-I226 Windows NDIS LAN driver 1.1.4.42w.zip
Intel_CSME_SW_2413.5.68.0_Consumer.zip
28.11.2024 / 1,016.68 MB
Intel® Converged Security and Management Engine SoftwareIntel_CSME_SW_2413.5.68.0_Consumer
Intel® Chipset Device Software Production Version 10.1.19502.8391.zip
27.11.2024 / 5.73 MB
Intel® Chipset Device Software Production Version 10.1.19502.8391
Intel® GNA Scoring Accelerator.zip
28.11.2024 / 575.55 KB
gna-03.00.00.1457-win-3_0_sv2_resign-20220819.zip
Intel® Graphics Driver Production Version 101.5333 (PR25).zip
28.11.2024 / 693.24 MB
Intel® Graphics Driver Production Version 101.5333 (PR25)
Intel® PROSetWireless for Bluetooth 23.30.0.3.zip
28.11.2024 / 94.25 MB
Intel_PROSet_Wireless_Bluetooth_23.30_PV_Version_Release_SBHBTW98458_23.30.0.3_Version1.0
Intel® PROSetWireless Wi-Fi Software 23.30.0.6 Production Version...
28.11.2024 / 460.11 MB
Intel® PROSetWireless Wi-Fi Software 23.30.0.6 Production Version SBHWFW00666 Generic
Intel® Serial IO.zip
28.11.2024 / 3.37 MB
SerialIO_30.100.2229.4_v2_PV_ADP-N_22H2
Intel® Smart Sound Technology.zip
28.11.2024 / 116.23 MB
Intel® Smart Sound Technology. ADSP-10.29.00.10650
Intel® Trace Hub.zip
28.11.2024 / 3.90 MB
Intel® Trace Hub ITHDriver-10.0.22000.724-x64-Release_sv2
WWAN&WCCD.zip
28.11.2024 / 90.77 MB
M2_7560_R_ADL-P_5.100.828andModem-2232.00. WCCD_7.1.100.38_SV2

Windows 10 IoT

Camera-63.22000.3.14762-ADL-N-HDMI-Prod-Win10.zip
28.11.2024 / 97.06 MB
Intel® Image Processing. UnitCamera-63.22000.3.14762-ADL-N-HDMI-Prod-Win10
CgosPy_1_3.zip
23.07.2024 / 655.40 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
cgutlcmd_win_1.7.0.1.zip
01.08.2024 / 18.41 MB
congatec System Utility Rev. 1.7.0.1. for Windows. Use for BIOS update or customization and panel configuration. Important note: Only compatible with cgos direct 3.0.0 and newer!
GNSS.zip
28.11.2024 / 820.49 KB
GNSS_4.19042.7.2_4G_5G_20H2_21H2_22H2
HIDEventFilterDriver-2.2.2.6_RS5_19H1_20H1_21H2_22H2_Certified.zip
28.11.2024 / 949.85 KB
HIDEventFilterDriver-2.2.2.6_RS5_19H1_20H1_21H2_22H2_Certified
HID_WOV_LED.zip
28.11.2024 / 135.67 KB
HidWovLed-Driver-SV2-11.0.1.104
Intel (R) Ethernet Controller I225-I226 Windows NDIS LAN driver...
27.11.2024 / 588.96 KB
Intel (R) Ethernet Controller I225-I226 Windows NDIS LAN driver 1.1.4.42w.zip
Intel_CSME_SW_2413.5.68.0_Consumer.zip
28.11.2024 / 1,016.68 MB
Intel® Converged Security and Management Engine SoftwareIntel_CSME_SW_2413.5.68.0_Consumer
Intel® Chipset Device Software Production Version 10.1.19502.8391.zip
27.11.2024 / 5.73 MB
Intel® Chipset Device Software Production Version 10.1.19502.8391
Intel® GNA Scoring Accelerator.zip
28.11.2024 / 575.55 KB
gna-03.00.00.1457-win-3_0_sv2_resign-20220819.zip
Intel® Graphics Driver Production Version 101.5333 (PR25).zip
28.11.2024 / 693.24 MB
Intel® Graphics Driver Production Version 101.5333 (PR25)
Intel® PROSetWireless for Bluetooth 23.30.0.3.zip
28.11.2024 / 94.25 MB
Intel_PROSet_Wireless_Bluetooth_23.30_PV_Version_Release_SBHBTW98458_23.30.0.3_Version1.0
Intel® PROSetWireless Wi-Fi Software 23.30.0.6 Production Version...
28.11.2024 / 460.11 MB
Intel® PROSetWireless Wi-Fi Software 23.30.0.6 Production Version SBHWFW00666 Generic
Intel® Serial IO.zip
28.11.2024 / 3.37 MB
SerialIO_30.100.2229.4_v2_PV_ADP-N_22H2
Intel® Smart Sound Technology.zip
28.11.2024 / 116.23 MB
Intel® Smart Sound Technology. ADSP-10.29.00.10650
Intel® Trace Hub.zip
28.11.2024 / 3.90 MB
Intel® Trace Hub ITHDriver-10.0.22000.724-x64-Release_sv2
WWAN&WCCD.zip
28.11.2024 / 90.77 MB
M2_7560_R_ADL-P_5.100.828andModem-2232.00. WCCD_7.1.100.38_SV2

Windows 11

CgosPy_1_3.zip
23.07.2024 / 655.40 KB
CgosPy is a Python package containing the cgos module which provides ctypes wrapper functions for accessing the CGOS API.
Cgos_direct_Win10_Win11_3.0.0.zip
05.08.2024 / 49.24 MB
CGOS direct driver for Windows 10 and Windows 11. Please refer to readme.txt for supported functions and boards.
CGUTILm16.pdf
02.07.2020 / 2.67 MB
congatec System Utility Users Guide
CGUTLGUI_Qt_v100.zip
25.03.2019 / 30.28 MB
Qt based GUI version of the congatec System Utility for Windows and Linux; Rev. 1.0.0. Supports BIOS and Firmware update as well as BIOS customization and panel configuration. Provides easy access to all CGOS functions and includes a CGOS based hardware monitor with logging functionality.
Important note: Only compatible with cgos 1.03.032 and older!

Produktvarianten

Produktfilter:

    Filter hinzufügen:

     -
     -
     -
     -
     -
     -
    Es gibt eine Vielzahl an möglichen Produktkonfigurationen und Optionen.
    Sollte Ihre gewünschte Konfiguration in unserem Filter nicht erscheinen, kontaktieren Sie bitte unseren Vertrieb für weiterführende Hilfe.
    conga-SA8/i-x7835RE-16G-eMMC64 (P/N 051410)

    SMARC 2.1 module with Intel Atom® x7835RE 8-core processor with 1.3GHz core frequency up to 3.6GHz (turbo), 16GB 4800MT/s LPDDR5 onboard memory and 64GB eMMC 5.1 onboard flash. Industrial grade temperature range from -40°C to 85°C.

    conga-SA8/i-x7835RE-8G-eMMC32 (P/N 051411)

    SMARC 2.1 module with Intel Atom® x7835RE 8-core processor with 1.3GHz core frequency up to 3.6GHz (turbo), 8GB 4800MT/s LPDDR5 onboard memory and 32GB eMMC 5.1 onboard flash. Industrial grade temperature range from -40°C to 85°C.

    conga-SA8/i-x7433RE-8G-eMMC32 (P/N 051412)

    SMARC 2.1 module with Intel Atom® x7433RE 4-core processor with 1.5GHz core frequency up to 3.4GHz (turbo), 8GB 4800MT/s LPDDR5 onboard memory and 32GB eMMC 5.1 onboard flash. Industrial grade temperature range from -40°C to 85°C.

    conga-SA8/i-x7433RE-4G-eMMC32 (P/N 051413)

    SMARC 2.1 module with Intel Atom® x7433RE 4-core processor with 1.5GHz core frequency up to 3.4GHz (turbo), 4GB 4800MT/s LPDDR5 onboard memory and 32GB eMMC 5.1 onboard flash. Industrial grade temperature range from -40°C to 85°C.

    conga-SA8/i3-N305-16G-eMMC64 (P/N 051414)

    SMARC 2.1 module with Intel Core™ i3-N305 8-core processor with 1.8GHz core frequency up to 3.8GHz (turbo), 16GB 4800MT/s LPDDR5 onboard memory and 64GB eMMC 5.1 onboard flash.

    conga-SA8/x7425E-8G-eMMC32 (P/N 051415)

    SMARC 2.1 module with Intel Atom® x7425E 4-core processor with 1.5GHz core frequency up to 3.4GHz (turbo), 8GB 4800MT/s LPDDR5 onboard memory and 32GB eMMC 5.1 onboard flash.

    conga-SA8/i-x7835RE-8G-eMMC32 AX210 (P/N 051420)

    SMARC 2.1 module with Intel Atom® x7835RE 8-core processor with 1.3GHz core frequency up to 3.6GHz (turbo), 8GB 4800MT/s LPDDR5 onboard memory and 32GB eMMC 5.1 onboard flash. Industrial grade temperature range from -40°C to 85°C. Intel AX210 Wifi6E/BT.

    Ecosystem Details

    Virtualization

    RTS Hypervisor (P/N 300501)

    Operating Systems

    ctrlX OS (P/N )
    Ubuntu Pro (P/N N/A)

    Cooling Solutions

    conga-SA8/HSP-B (P/N 051451)

    Standard heatspreader for SMARC 2.1 module conga-SA8.

    conga-SA8/CSP-B (P/N 051450)

    Passive cooling solution for SMARC 2.1 module conga-SA8.

    conga-SMARC/CSA Adapter (P/N 050060)

    Active cooling solution adapter for SMARC 2.1 modules used in combination with module heat spreader.

    Carrierboards

    conga-SEVAL (P/N 007010)

    Evaluation Carrier Board for SMARC 2.0 modules.

    conga-SMC1/SMARC-x86 (P/N 020751)

    Application Carrier Board for x86 based SMARC 2.0 modules
